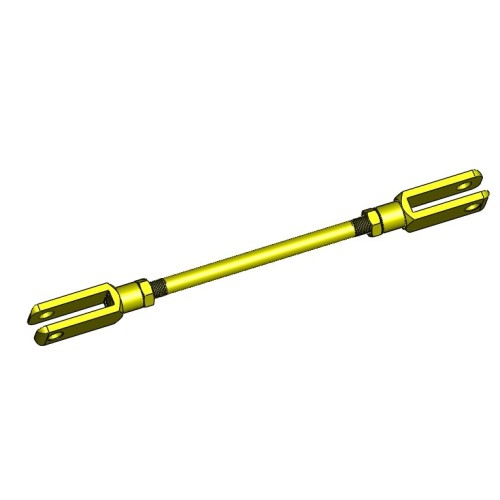

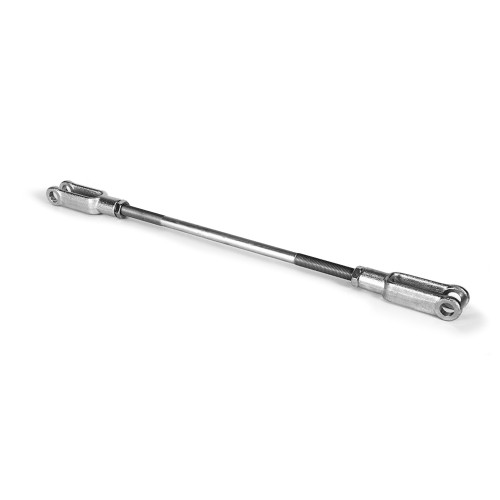

lcr-090-linkage-connecting-rod-18-75-in-3-8-24-rh-lh-thread-3-8-in-pin-holes

18.75 in / 3/8-24 RH/LH

LINKAGE ROD

LCR-090 Biela de conexión de eslabonamiento 18.75 in, rosca derecha/izquierda 3/8-24, orificios para pasador de 3/8 in

Name: LCR-090 Linkage Connecting Rod 18.75 in, 3/8-24 RH/LH Thread, 3/8 in Pin Holes
Brand: SYZ Rod Ends
SKU: LCR-090
Availability: InStock

Part No.: LCR-090 · Adjustable motion-transfer assembly series

✓ ISO 9001 Certified

✓ SGS Verified

✓ 26+ Years Factory

✓ OEM / ODM Ready

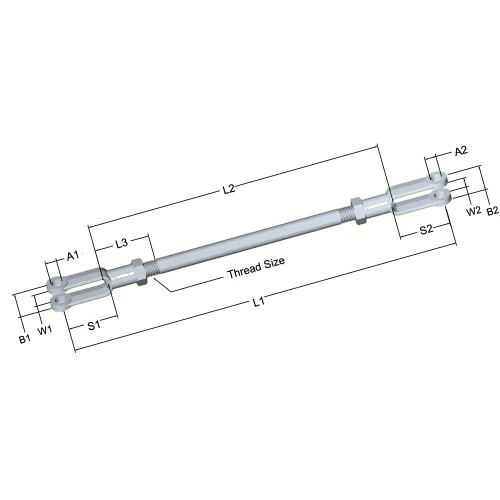

Thread: 3/8-24 RH/LH

Nominal Length: 18.75 in.

L1 Min / Max: 16.875–20.750 in.

A1 / A2: 0.375 / 0.375 in.

B1 / B2: 0.875 / 0.875 in.

W1 / W2: 0.438 / 0.438 in.

Weight

0.82 lbs

Material

Carbon steel; chromoly steel; aluminum alloy steel optional; stainless steel optional

Get a Quote →

Request Free Sample Back to Spec. Page

⚡ Typically responds within 24 hours

MOQ:50 pcs / model

Lead Time:7–15 days

Sample:Free (excl. freight)

Payment:T/T · PayPal · L/C

Descripción general

Biela de conexión — Descripción general del producto

LCR-090 es una biela de conexión de eslabonamiento de 18.75 in para eslabonamientos mecánicos ajustables, bielas de mando y conjuntos de transferencia de movimiento. El conjunto utiliza geometría de rosca derecha/izquierda 3/8-24 con extremos de orificio para pasador tipo horquilla de 3/8 in. Las referencias dimensionales son L1 16.875-20.750 in, L2 16.50 in de referencia, L3 2.75 in típico, A1/A2 0.375/0.375 in, B1/B2 0.875/0.875 in, S1/S2 1.625/1.625 in y W1/W2 0.438/0.438 in. Las opciones de material son acero al carbono, acero cromoly, acero de aleación de aluminio opcional y acero inoxidable opcional. Confirme el material final, el acabado, el sentido de la rosca y la configuración de herrajes con SYZ al solicitar una cotización.

Tabla de medidas

Biela de conexión — Gama completa de medidas

All available sizes in the Biela de conexión series. Can’t find your size? Contact us for custom dimensions.

Part Number	Weight (lbs)	Thread	Nominal Length	L1 Min	L1 Max	A1	A2	B1	B2	L2 (ref)	L3 (typ)	S1	S2	W1	W2
LCR-001	0.73	3/8-24 RH/LH	15.75	13.875	17.750	0.375	0.375	0.875	0.875	13.500	2.75	1.625	1.625	0.438	0.438
LCR-002	1.1	3/8-24 RH/LH	27.75	25.875	29.750	0.375	0.375	0.875	0.875	25.500	2.75	1.625	1.625	0.438	0.438
LCR-003	0.63	3/8-24 RH/LH	9.75	7.875	11.750	0.375	0.375	0.875	0.875	7.500	2.750	1.625	1.625	0.438	0.438
LCR-004	1.02	3/8-24 RH/LH	22.50	20.625	24.500	0.375	0.375	0.875	0.875	20.250	2.75	1.625	1.625	0.438	0.438
LCR-005	0.85	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.500	0.500	10.500	2.750	1.625	1.625	0.406	0.406
LCR-006	0.48	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.500	0.500	3.750	1.500	1.625	1.625	0.406	0.406
LCR-007	1.03	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.500	0.500	14.25	2.75	1.625	1.625	0.406	0.406
LCR-008	1.17	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.500	0.500	21.750	2.75	1.625	1.625	0.406	0.406
LCR-009	1.13	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.500	0.500	18.750	2.75	1.625	1.625	0.406	0.406
LCR-010	0.45	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.500	0.500	3.000	1.250	1.625	1.625	0.406	0.406
LCR-011	1.14	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.500	0.500	19.500	2.75	1.625	1.625	0.406	0.406
LCR-012	1.19	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.500	0.500	25.500	2.75	1.625	1.625	0.406	0.406
LCR-013	1.35	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.500	0.500	29.250	2.75	1.625	1.625	0.406	0.406
LCR-014	1.18	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.500	0.500	24.750	2.75	1.625	1.625	0.406	0.406
LCR-015	0.69	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.906	0.906	5.250	2.500	1.625	1.625	0.644	0.644
LCR-016	1.09	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.906	0.906	18.000	2.75	1.625	1.625	0.644	0.644
LCR-017	1.48	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.906	0.906	30.750	2.75	1.625	1.625	0.644	0.644
LCR-018	0.81	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.906	0.906	12.750	2.75	1.625	1.625	0.644	0.644
LCR-019	1.19	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.906	0.906	24.750	2.75	1.625	1.625	0.644	0.644
LCR-020	1.07	1/2-20	11.50	10.876	12.25	0.501	0.501	0.625	0.625	9.000	3.25	2.125	2.125	0.500	0.500
LCR-021	1.19	1/2-20	7.50	6.876	8.25	0.501	0.501	1.125	1.125	5.000	2.25	2.125	2.125	0.875	0.875
LCR-022	2.07	1/2-20	23.50	22.876	24.25	0.501	0.501	1.125	1.125	21.000	3.25	2.125	2.125	0.875	0.875
LCR-023	0.75	3/8-24 RH/LH	16.50	14.625	18.500	0.375	0.375	0.875	0.875	14.25	2.75	1.625	1.625	0.438	0.438
LCR-024	1.14	3/8-24 RH/LH	29.25	27.375	31.250	0.375	0.375	0.875	0.875	27.000	2.75	1.625	1.625	0.438	0.438
LCR-025	0.65	3/8-24 RH/LH	10.50	8.625	12.500	0.375	0.375	0.875	0.875	8.250	2.750	1.625	1.625	0.438	0.438
LCR-026	1.04	3/8-24 RH/LH	23.25	21.375	25.25	0.375	0.375	0.875	0.875	21.000	2.75	1.625	1.625	0.438	0.438
LCR-027	0.68	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.500	0.500	7.500	2.750	1.625	1.625	0.406	0.406
LCR-028	0.48	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.500	0.500	3.750	1.500	1.625	1.625	0.406	0.406
LCR-029	0.64	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.500	0.500	6.750	2.750	1.625	1.625	0.406	0.406
LCR-030	1.13	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.500	0.500	18.750	2.75	1.625	1.625	0.406	0.406
LCR-031	1.36	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.500	0.500	33.000	2.75	1.625	1.625	0.406	0.406
LCR-032	0.56	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.500	0.500	5.250	2.500	1.625	1.625	0.406	0.406
LCR-033	1.1	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.500	0.500	16.50	2.75	1.625	1.625	0.406	0.406
LCR-034	1.34	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.500	0.500	27.750	2.75	1.625	1.625	0.406	0.406
LCR-035	1.35	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.500	0.500	30.000	2.75	1.625	1.625	0.406	0.406
LCR-036	1.19	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.500	0.500	25.500	2.75	1.625	1.625	0.406	0.406
LCR-037	0.72	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.906	0.906	6.000	2.750	1.625	1.625	0.644	0.644
LCR-038	1.11	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.906	0.906	18.750	2.75	1.625	1.625	0.644	0.644
LCR-039	1.55	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.906	0.906	33.000	2.75	1.625	1.625	0.644	0.644
LCR-040	0.84	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.906	0.906	13.500	2.75	1.625	1.625	0.644	0.644
LCR-041	1.21	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.906	0.906	25.500	2.75	1.625	1.625	0.644	0.644
LCR-042	1.18	1/2-20	12.50	11.876	13.25	0.501	0.501	0.625	0.625	10.000	3.25	2.125	2.125	0.500	0.500
LCR-043	1.25	1/2-20	8.50	7.876	9.250	0.501	0.501	1.125	1.125	6.000	2.75	2.125	2.125	0.875	0.875
LCR-044	2.12	1/2-20	24.50	23.876	25.25	0.501	0.501	1.125	1.125	22.000	3.25	2.125	2.125	0.875	0.875
LCR-045	0.39	3/8-24 RH/LH	6.00	5.954	6.000	0.375	0.375	0.875	0.875	1.75	0.625	1.625	1.625	0.438	0.438
LCR-046	0.78	3/8-24 RH/LH	17.25	15.375	19.25	0.375	0.375	0.875	0.875	15.000	2.75	1.625	1.625	0.438	0.438
LCR-047	1.17	3/8-24 RH/LH	30.00	28.125	32.000	0.375	0.375	0.875	0.875	27.750	2.75	1.625	1.625	0.438	0.438
LCR-048	0.67	3/8-24 RH/LH	11.31	9.375	13.250	0.375	0.375	0.875	0.875	9.000	2.750	1.625	1.625	0.438	0.438
LCR-049	1.06	3/8-24 RH/LH	24.00	22.125	26.000	0.375	0.375	0.875	0.875	21.750	2.75	1.625	1.625	0.438	0.438
LCR-050	1.08	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.500	0.500	12.000	2.750	1.625	1.625	0.406	0.406
LCR-051	0.48	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.500	0.500	3.750	1.500	1.625	1.625	0.406	0.406
LCR-052	1.11	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.500	0.500	17.250	2.75	1.625	1.625	0.406	0.406
LCR-053	0.6	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.500	0.500	6.000	2.750	1.625	1.625	0.406	0.406
LCR-054	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.500	0.500	20.250	2.75	1.625	1.625	0.406	0.406
LCR-055	0.45	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.500	0.500	3.000	1.250	1.625	1.625	0.406	0.406
LCR-056	1.16	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.500	0.500	21.000	2.75	1.625	1.625	0.406	0.406
LCR-057	1.14	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.500	0.500	19.500	2.75	1.625	1.625	0.406	0.406
LCR-058	1.19	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.500	0.500	27.000	2.75	1.625	1.625	0.406	0.406
LCR-059	1.19	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.500	0.500	27.000	2.75	1.625	1.625	0.406	0.406
LCR-060	0.74	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.906	0.906	6.750	2.750	1.625	1.625	0.644	0.644
LCR-061	1.04	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.906	0.906	19.500	2.75	1.625	1.625	0.644	0.644
LCR-062	1.62	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.906	0.906	35.250	2.75	1.625	1.625	0.644	0.644
LCR-063	0.86	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.906	0.906	14.25	2.75	1.625	1.625	0.644	0.644
LCR-064	1.25	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.906	0.906	27.000	2.75	1.625	1.625	0.644	0.644
LCR-065	1.24	1/2-20	13.50	12.876	14.25	0.501	0.501	0.625	0.625	11.000	3.25	2.125	2.125	0.500	0.500
LCR-066	1.31	1/2-20	9.50	8.876	10.25	0.501	0.501	1.125	1.125	7.000	2.75	2.125	2.125	0.875	0.875
LCR-067	0.41	3/8-24 RH/LH	6.25	5.954	6.500	0.375	0.375	0.875	0.875	2.250	0.750	1.625	1.625	0.438	0.438
LCR-068	0.8	3/8-24 RH/LH	18.00	16.125	20.000	0.375	0.375	0.875	0.875	15.750	2.75	1.625	1.625	0.438	0.438
LCR-069	1.19	3/8-24 RH/LH	30.75	28.500	2.75	0.375	0.375	0.875	0.875	28.500	2.75	1.625	1.625	0.438	0.438
LCR-070	0.69	3/8-24 RH/LH	12.75	10.875	14.750	0.375	0.375	0.875	0.875	9.750	2.750	1.625	1.625	0.438	0.438
LCR-071	1.09	3/8-24 RH/LH	24.75	22.875	26.750	0.375	0.375	0.875	0.875	22.50	2.75	1.625	1.625	0.438	0.438
LCR-072	0.85	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.500	0.500	10.500	2.750	1.625	1.625	0.406	0.406
LCR-073	0.6	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.500	0.500	6.000	2.750	1.625	1.625	0.406	0.406
LCR-074	0.72	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.500	0.500	8.250	2.750	1.625	1.625	0.406	0.406
LCR-075	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.500	0.500	20.250	2.75	1.625	1.625	0.406	0.406
LCR-076	0.43	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.500	0.500	2.250	0.750	1.625	1.625	0.406	0.406
LCR-077	0.56	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.500	0.500	5.250	2.500	1.625	1.625	0.406	0.406
LCR-078	1.14	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.500	0.500	19.500	2.75	1.625	1.625	0.406	0.406
LCR-079	1.16	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.500	0.500	21.000	2.75	1.625	1.625	0.406	0.406
LCR-080	0.94	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.500	0.500	12.750	2.75	1.625	1.625	0.406	0.406
LCR-081	1.34	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.500	0.500	27.750	2.75	1.625	1.625	0.406	0.406
LCR-082	0.92	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.906	0.906	7.500	2.750	1.625	1.625	0.644	0.644
LCR-083	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.906	0.906	20.250	2.75	1.625	1.625	0.644	0.644
LCR-084	0.48	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.906	0.906	1.75	0.625	1.625	1.625	0.644	0.644
LCR-085	0.88	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.906	0.906	15.000	2.75	1.625	1.625	0.644	0.644
LCR-086	1.27	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.906	0.906	27.750	2.75	1.625	1.625	0.644	0.644
LCR-087	1.29	1/2-20	14.50	13.876	15.25	0.501	0.501	0.625	0.625	12.000	3.25	2.125	2.125	0.500	0.500
LCR-088	1.36	1/2-20	10.50	9.876	11.250	0.501	0.501	1.125	1.125	8.000	3.25	2.125	2.125	0.875	0.875
LCR-089	0.43	3/8-24 RH/LH	6.50	5.9540	7.2500	0.375	0.375	0.875	0.875	3.000	1.250	1.625	1.625	0.438	0.438
LCR-090	0.82	3/8-24 RH/LH	18.75	16.875	20.750	0.375	0.375	0.875	0.875	16.50	2.75	1.625	1.625	0.438	0.438
LCR-091	1.21	3/8-24 RH/LH	31.50	29.625	33.500	0.375	0.375	0.875	0.875	29.250	2.75	1.625	1.625	0.438	0.438
LCR-092	0.72	3/8-24 RH/LH	13.25	11.375	15.250	0.375	0.375	0.875	0.875	10.500	2.750	1.625	1.625	0.438	0.438
LCR-093	1.11	3/8-24 RH/LH	25.50	23.625	27.500	0.375	0.375	0.875	0.875	23.250	2.75	1.625	1.625	0.438	0.438
LCR-094	0.68	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.500	0.500	7.500	2.750	1.625	1.625	0.406	0.406
LCR-095	0.64	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.500	0.500	6.750	2.750	1.625	1.625	0.406	0.406
LCR-096	1.03	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.500	0.500	14.25	2.75	1.625	1.625	0.406	0.406
LCR-097	0.64	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.500	0.500	6.750	2.750	1.625	1.625	0.406	0.406
LCR-098	1.1	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.500	0.500	22.50	2.75	1.625	1.625	0.406	0.406
LCR-099	0.45	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.500	0.500	3.000	1.250	1.625	1.625	0.406	0.406
LCR-100	0.94	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.500	0.500	12.750	2.75	1.625	1.625	0.406	0.406
LCR-101	1.19	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.500	0.500	27.000	2.75	1.625	1.625	0.406	0.406
LCR-102	1.34	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.500	0.500	27.750	2.75	1.625	1.625	0.406	0.406
LCR-103	1.34	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.500	0.500	28.500	2.75	1.625	1.625	0.406	0.406
LCR-104	0.79	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.906	0.906	8.250	2.750	1.625	1.625	0.644	0.644
LCR-105	1.53	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.906	0.906	21.000	2.75	1.625	1.625	0.644	0.644
LCR-106	0.49	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.906	0.906	2.250	0.750	1.625	1.625	0.644	0.644
LCR-107	0.83	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.906	0.906	15.750	2.75	1.625	1.625	0.644	0.644
LCR-108	1.3	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.906	0.906	28.500	2.75	1.625	1.625	0.644	0.644
LCR-109	1.36	1/2-20	15.50	14.876	16.25	0.501	0.501	0.625	0.625	13.000	3.25	2.125	2.125	0.500	0.500
LCR-110	1.36	1/2-20	11.50	10.876	12.25	0.501	0.501	1.125	1.125	9.000	3.25	2.125	2.125	0.875	0.875
LCR-111	0.45	3/8-24 RH/LH	7.00	5.954	8.000	0.375	0.375	0.875	0.875	3.750	1.500	1.625	1.625	0.438	0.438
LCR-112	0.84	3/8-24 RH/LH	19.50	17.625	21.500	0.375	0.375	0.875	0.875	17.250	2.75	1.625	1.625	0.438	0.438
LCR-113	1.24	3/8-24 RH/LH	32.25	30.375	34.250	0.375	0.375	0.875	0.875	30.000	2.75	1.625	1.625	0.438	0.438
LCR-114	0.76	3/8-24 RH/LH	14.25	12.375	16.250	0.375	0.375	0.875	0.875	12.000	2.750	1.625	1.625	0.438	0.438
LCR-115	1.13	3/8-24 RH/LH	26.50	24.375	28.500	0.375	0.375	0.875	0.875	24.000	2.75	1.625	1.625	0.438	0.438
LCR-116	1.08	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.500	0.500	12.000	2.750	1.625	1.625	0.406	0.406
LCR-117	0.72	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.500	0.500	8.250	2.750	1.625	1.625	0.406	0.406
LCR-118	1.13	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.500	0.500	18.750	2.75	1.625	1.625	0.406	0.406
LCR-119	0.72	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.500	0.500	8.250	2.750	1.625	1.625	0.406	0.406
LCR-120	1.44	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.500	0.500	35.250	2.75	1.625	1.625	0.406	0.406
LCR-121	0.56	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.500	0.500	5.250	2.500	1.625	1.625	0.406	0.406
LCR-122	1.17	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.500	0.500	23.250	2.75	1.625	1.625	0.406	0.406
LCR-123	1.34	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.500	0.500	28.500	2.75	1.625	1.625	0.406	0.406
LCR-124	0.99	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.500	0.500	13.500	2.75	1.625	1.625	0.406	0.406
LCR-125	1.35	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.500	0.500	29.250	2.75	1.625	1.625	0.406	0.406
LCR-126	0.81	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.906	0.906	9.000	2.750	1.625	1.625	0.644	0.644
LCR-127	1.2	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.906	0.906	21.750	2.75	1.625	1.625	0.644	0.644
LCR-128	0.51	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.906	0.906	3.000	1.250	1.625	1.625	0.644	0.644
LCR-129	0.93	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.906	0.906	16.50	2.75	1.625	1.625	0.644	0.644
LCR-130	1.32	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.906	0.906	29.250	2.75	1.625	1.625	0.644	0.644
LCR-131	1.4	1/2-20	16.50	15.876	17.25	0.501	0.501	0.625	0.625	14.000	3.25	2.125	2.125	0.500	0.500
LCR-132	1.46	1/2-20	12.50	11.876	13.25	0.501	0.501	1.125	1.125	10.000	3.25	2.125	2.125	0.875	0.875
LCR-133	0.48	3/8-24 RH/LH	7.50	5.594	9.500	0.375	0.375	0.875	0.875	5.250	2.500	1.625	1.625	0.438	0.438
LCR-134	0.87	3/8-24 RH/LH	20.50	18.375	22.500	0.375	0.375	0.875	0.875	18.000	2.75	1.625	1.625	0.438	0.438
LCR-135	1.26	3/8-24 RH/LH	33.00	31.125	35.000	0.375	0.375	0.875	0.875	30.750	2.75	1.625	1.625	0.438	0.438
LCR-136	0.79	3/8-24 RH/LH	15.00	13.125	17.000	0.375	0.375	0.875	0.875	12.750	2.75	1.625	1.625	0.438	0.438
LCR-137	1.15	3/8-24 RH/LH	27.00	25.125	29.000	0.375	0.375	0.875	0.875	24.750	2.75	1.625	1.625	0.438	0.438
LCR-138	1.12	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.500	0.500	18.000	2.75	1.625	1.625	0.406	0.406
LCR-139	0.6	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.500	0.500	6.000	2.750	1.625	1.625	0.406	0.406
LCR-140	1.07	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.500	0.500	15.000	2.75	1.625	1.625	0.406	0.406
LCR-141	1.1	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.500	0.500	22.50	2.75	1.625	1.625	0.406	0.406
LCR-142	1.17	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.500	0.500	21.750	2.75	1.625	1.625	0.406	0.406
LCR-143	0.45	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.500	0.500	3.000	1.250	1.625	1.625	0.406	0.406
LCR-144	1.18	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.500	0.500	24.000	2.75	1.625	1.625	0.406	0.406
LCR-145	1.34	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.500	0.500	27.750	2.75	1.625	1.625	0.406	0.406
LCR-146	1.36	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.500	0.500	30.750	2.75	1.625	1.625	0.406	0.406
LCR-147	1.35	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.500	0.500	30.000	2.75	1.625	1.625	0.406	0.406
LCR-148	1.03	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.906	0.906	9.750	2.750	1.625	1.625	0.644	0.644
LCR-149	1.23	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.906	0.906	22.50	2.75	1.625	1.625	0.644	0.644
LCR-150	0.54	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.906	0.906	3.750	1.500	1.625	1.625	0.644	0.644
LCR-151	0.95	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.906	0.906	17.250	2.75	1.625	1.625	0.644	0.644
LCR-152	1.34	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.906	0.906	30.000	2.75	1.625	1.625	0.644	0.644
LCR-153	1.47	1/2-20	17.50	16.876	18.250	0.501	0.501	0.625	0.625	15.000	3.25	2.125	2.125	0.500	0.500
LCR-154	1.52	1/2-20	13.50	12.876	14.25	0.501	0.501	1.125	1.125	11.000	3.25	2.125	2.125	0.875	0.875
LCR-155	0.5	3/8-24 RH/LH	8.31	6.375	10.250	0.375	0.375	0.875	0.875	6.000	2.750	1.625	1.625	0.438	0.438
LCR-156	0.89	3/8-24 RH/LH	21.00	19.125	23.000	0.375	0.375	0.875	0.875	18.750	2.75	1.625	1.625	0.438	0.438
LCR-157	1.33	3/8-24 RH/LH	35.25	33.375	37.250	0.375	0.375	0.875	0.875	33.000	2.75	1.625	1.625	0.438	0.438
LCR-158	0.81	3/8-24 RH/LH	15.75	13.875	17.750	0.375	0.375	0.875	0.875	13.500	2.75	1.625	1.625	0.438	0.438
LCR-159	1.18	3/8-24 RH/LH	27.75	25.875	29.750	0.375	0.375	0.875	0.875	25.500	2.75	1.625	1.625	0.438	0.438
LCR-160	0.85	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.500	0.500	10.500	2.750	1.625	1.625	0.406	0.406
LCR-161	0.64	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.500	0.500	6.750	2.750	1.625	1.625	0.406	0.406
LCR-162	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.500	0.500	20.250	2.75	1.625	1.625	0.406	0.406
LCR-163	1.17	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.500	0.500	21.750	2.75	1.625	1.625	0.406	0.406
LCR-164	0.43	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.500	0.500	2.250	0.750	1.625	1.625	0.406	0.406
LCR-165	0.56	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.500	0.500	5.250	2.500	1.625	1.625	0.406	0.406
LCR-166	1.18	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.500	0.500	24.750	2.75	1.625	1.625	0.406	0.406
LCR-167	1.35	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.500	0.500	29.250	2.75	1.625	1.625	0.406	0.406
LCR-168	1.34	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.500	0.500	28.500	2.75	1.625	1.625	0.406	0.406
LCR-169	1.36	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.500	0.500	30.750	2.75	1.625	1.625	0.406	0.406
LCR-170	1.07	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.906	0.906	10.500	2.750	1.625	1.625	0.644	0.644
LCR-171	1.25	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.906	0.906	23.250	2.75	1.625	1.625	0.644	0.644
LCR-172	0.58	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.906	0.906	5.250	2.500	1.625	1.625	0.644	0.644
LCR-173	0.97	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.906	0.906	18.000	2.75	1.625	1.625	0.644	0.644
LCR-174	1.37	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.906	0.906	30.750	2.75	1.625	1.625	0.644	0.644
LCR-175	1.51	1/2-20	18.50	17.876	19.250	0.501	0.501	0.625	0.625	16.000	3.25	2.125	2.125	0.500	0.500
LCR-176	1.57	1/2-20	14.50	13.876	15.25	0.501	0.501	1.125	1.125	12.000	3.25	2.125	2.125	0.875	0.875
LCR-177	0.52	3/8-24 RH/LH	9.00	7.125	11.000	0.375	0.375	0.875	0.875	6.750	2.750	1.625	1.625	0.438	0.438
LCR-178	0.91	3/8-24 RH/LH	21.75	19.875	23.750	0.375	0.375	0.875	0.875	19.500	2.75	1.625	1.625	0.438	0.438
LCR-179	1.4	3/8-24 RH/LH	37.50	35.625	39.500	0.375	0.375	0.875	0.875	35.250	2.75	1.625	1.625	0.438	0.438
LCR-180	0.83	3/8-24 RH/LH	16.50	14.625	18.500	0.375	0.375	0.875	0.875	14.25	2.75	1.625	1.625	0.438	0.438
LCR-181	1.22	3/8-24 RH/LH	29.25	27.375	31.250	0.375	0.375	0.875	0.875	27.000	2.75	1.625	1.625	0.438	0.438
LCR-182	1.12	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.500	0.500	18.000	2.75	1.625	1.625	0.406	0.406
LCR-183	1.07	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.500	0.500	15.000	2.75	1.625	1.625	0.406	0.406
LCR-184	0.8	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.500	0.500	9.750	2.750	1.625	1.625	0.406	0.406
LCR-185	1.36	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.500	0.500	33.000	2.75	1.625	1.625	0.406	0.406
LCR-186	1.09	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.500	0.500	15.750	2.75	1.625	1.625	0.406	0.406
LCR-187	0.76	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.500	0.500	9.000	2.750	1.625	1.625	0.406	0.406
LCR-188	1.16	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.500	0.500	21.000	2.75	1.625	1.625	0.406	0.406
LCR-189	0.76	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.500	0.500	9.000	2.750	1.625	1.625	0.406	0.406
LCR-190	1.1	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.500	0.500	16.50	2.75	1.625	1.625	0.406	0.406
LCR-191	0.42	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.500	0.500	1.75	0.625	1.625	1.625	0.406	0.406
LCR-192	1.27	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.906	0.906	12.000	2.750	1.625	1.625	0.644	0.644
LCR-193	1.27	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.906	0.906	24.000	2.75	1.625	1.625	0.644	0.644
LCR-194	0.61	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.906	0.906	6.000	2.750	1.625	1.625	0.644	0.644
LCR-195	1	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.906	0.906	18.750	2.75	1.625	1.625	0.644	0.644
LCR-196	1.44	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.906	0.906	33.000	2.75	1.625	1.625	0.644	0.644
LCR-197	1.58	1/2-20	19.50	18.876	20.25	0.501	0.501	0.625	0.625	17.000	3.25	2.125	2.125	0.500	0.500
LCR-198	1.64	1/2-20	15.50	14.876	16.25	0.501	0.501	1.125	1.125	13.000	3.25	2.125	2.125	0.875	0.875
LCR-199	0.55	3/8-24 RH/LH	9.75	7.875	11.750	0.375	0.375	0.875	0.875	7.500	2.750	1.625	1.625	0.438	0.438
LCR-200	0.94	3/8-24 RH/LH	22.50	20.625	24.500	0.375	0.375	0.875	0.875	20.250	2.75	1.625	1.625	0.438	0.438
LCR-201	0.47	3/8-24 RH/LH	6.00	5.954	6.000	0.375	0.375	0.875	0.875	1.75	0.625	1.625	1.625	0.438	0.438
LCR-202	0.86	3/8-24 RH/LH	17.25	15.375	19.25	0.375	0.375	0.875	0.875	15.000	2.75	1.625	1.625	0.438	0.438
LCR-203	1.25	3/8-24 RH/LH	30.00	28.125	32.000	0.375	0.375	0.875	0.875	27.750	2.75	1.625	1.625	0.438	0.438
LCR-204	0.68	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.500	0.500	7.500	2.750	1.625	1.625	0.406	0.406
LCR-205	0.72	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.500	0.500	8.250	2.750	1.625	1.625	0.406	0.406
LCR-206	1.13	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.500	0.500	18.750	2.75	1.625	1.625	0.406	0.406
LCR-207	1.07	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.500	0.500	15.000	2.75	1.625	1.625	0.406	0.406
LCR-208	1.09	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.500	0.500	15.750	2.75	1.625	1.625	0.406	0.406
LCR-209	0.76	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.500	0.500	9.000	2.750	1.625	1.625	0.406	0.406
LCR-210	0.99	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.500	0.500	13.500	2.75	1.625	1.625	0.406	0.406
LCR-211	1.17	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.500	0.500	23.250	2.75	1.625	1.625	0.406	0.406
LCR-212	1.35	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.500	0.500	29.250	2.75	1.625	1.625	0.406	0.406
LCR-213	0.42	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.500	0.500	1.75	0.625	1.625	1.625	0.406	0.406
LCR-214	0.92	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.906	0.906	12.750	2.75	1.625	1.625	0.644	0.644
LCR-215	1.3	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.906	0.906	24.750	2.75	1.625	1.625	0.644	0.644
LCR-216	0.63	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.906	0.906	6.750	2.750	1.625	1.625	0.644	0.644
LCR-217	0.92	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.906	0.906	19.500	2.75	1.625	1.625	0.644	0.644
LCR-218	1.51	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.906	0.906	35.250	2.75	1.625	1.625	0.644	0.644
LCR-219	1.62	1/2-20	20.50	19.876	21.25	0.501	0.501	0.625	0.625	18.000	3.25	2.125	2.125	0.500	0.500
LCR-220	1.68	1/2-20	16.50	15.876	17.25	0.501	0.501	1.125	1.125	14.000	3.25	2.125	2.125	0.875	0.875
LCR-221	0.57	3/8-24 RH/LH	10.50	8.625	12.500	0.375	0.375	0.875	0.875	8.250	2.750	1.625	1.625	0.438	0.438
LCR-222	0.96	3/8-24 RH/LH	23.25	21.375	25.25	0.375	0.375	0.875	0.875	21.000	2.75	1.625	1.625	0.438	0.438
LCR-223	0.49	3/8-24 RH/LH	6.25	5.954	6.500	0.375	0.375	0.875	0.875	2.250	0.750	1.625	1.625	0.438	0.438
LCR-224	0.88	3/8-24 RH/LH	18.00	16.125	20.000	0.375	0.375	0.875	0.875	15.750	2.75	1.625	1.625	0.438	0.438
LCR-225	1.27	3/8-24 RH/LH	30.75	28.500	2.75	0.375	0.375	0.875	0.875	28.500	2.75	1.625	1.625	0.438	0.438
LCR-226	1.08	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.500	0.500	12.000	2.750	1.625	1.625	0.406	0.406
LCR-227	0.48	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.500	0.500	3.750	1.500	1.625	1.625	0.406	0.406
LCR-228	1.1	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.500	0.500	22.50	2.75	1.625	1.625	0.406	0.406
LCR-229	0.8	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.500	0.500	9.750	2.750	1.625	1.625	0.406	0.406
LCR-230	0.43	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.500	0.500	2.250	0.750	1.625	1.625	0.406	0.406
LCR-231	0.94	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.500	0.500	12.750	2.75	1.625	1.625	0.406	0.406
LCR-232	1.19	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.500	0.500	25.500	2.75	1.625	1.625	0.406	0.406
LCR-233	1.18	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.500	0.500	24.000	2.75	1.625	1.625	0.406	0.406
LCR-234	1.35	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.500	0.500	30.000	2.75	1.625	1.625	0.406	0.406
LCR-235	0.42	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.500	0.500	1.75	0.625	1.625	1.625	0.406	0.406
LCR-236	0.95	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.906	0.906	13.500	2.75	1.625	1.625	0.644	0.644
LCR-237	1.32	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.906	0.906	25.500	2.75	1.625	1.625	0.644	0.644
LCR-238	0.81	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.906	0.906	7.500	2.750	1.625	1.625	0.644	0.644
LCR-239	1.05	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.906	0.906	20.250	2.75	1.625	1.625	0.644	0.644
LCR-240	0.8	1/2-20	6.00	5.75	6.25	0.501	0.501	0.625	0.625	3.000	1.250	2.125	2.125	0.500	0.500
LCR-241	1.69	1/2-20	21.50	20.876	22.25	0.501	0.501	0.625	0.625	19.000	3.25	2.125	2.125	0.500	0.500
LCR-242	1.75	1/2-20	17.50	16.876	18.250	0.501	0.501	1.125	1.125	15.000	3.25	2.125	2.125	0.875	0.875
LCR-243	0.59	3/8-24 RH/LH	11.31	9.375	13.250	0.375	0.375	0.875	0.875	9.000	2.750	1.625	1.625	0.438	0.438
LCR-244	0.98	3/8-24 RH/LH	24.00	22.125	26.000	0.375	0.375	0.875	0.875	21.750	2.75	1.625	1.625	0.438	0.438
LCR-245	0.51	3/8-24 RH/LH	6.50	5.9540	7.2500	0.375	0.375	0.875	0.875	3.000	1.250	1.625	1.625	0.438	0.438
LCR-246	0.9	3/8-24 RH/LH	18.75	16.875	20.750	0.375	0.375	0.875	0.875	16.50	2.75	1.625	1.625	0.438	0.438
LCR-247	1.29	3/8-24 RH/LH	31.50	29.625	33.500	0.375	0.375	0.875	0.875	29.250	2.75	1.625	1.625	0.438	0.438
LCR-248	1.12	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.500	0.500	18.000	2.75	1.625	1.625	0.406	0.406
LCR-249	0.8	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.500	0.500	9.750	2.750	1.625	1.625	0.406	0.406
LCR-250	1.11	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.500	0.500	17.250	2.75	1.625	1.625	0.406	0.406
LCR-251	1.36	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.500	0.500	33.000	2.75	1.625	1.625	0.406	0.406
LCR-252	1.36	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.500	0.500	33.000	2.75	1.625	1.625	0.406	0.406
LCR-253	0.99	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.500	0.500	13.500	2.75	1.625	1.625	0.406	0.406
LCR-254	1.17	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.500	0.500	23.250	2.75	1.625	1.625	0.406	0.406
LCR-255	1.18	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.500	0.500	24.750	2.75	1.625	1.625	0.406	0.406
LCR-256	1.14	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.500	0.500	19.500	2.75	1.625	1.625	0.406	0.406
LCR-257	0.42	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.500	0.500	1.75	0.625	1.625	1.625	0.406	0.406
LCR-258	0.97	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.906	0.906	14.25	2.75	1.625	1.625	0.644	0.644
LCR-259	1.36	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.906	0.906	27.000	2.75	1.625	1.625	0.644	0.644
LCR-260	0.68	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.906	0.906	8.250	2.750	1.625	1.625	0.644	0.644
LCR-261	1.42	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.906	0.906	21.000	2.75	1.625	1.625	0.644	0.644
LCR-262	0.86	1/2-20	6.50	5.876	7.25	0.501	0.501	0.625	0.625	4.000	1.75	2.125	2.125	0.500	0.500
LCR-263	1.73	1/2-20	22.50	21.876	23.25	0.501	0.501	0.625	0.625	20.000	3.25	2.125	2.125	0.500	0.500
LCR-264	1.79	1/2-20	18.50	17.876	19.250	0.501	0.501	1.125	1.125	16.000	3.25	2.125	2.125	0.875	0.875
LCR-265	0.61	3/8-24 RH/LH	12.75	10.875	14.750	0.375	0.375	0.875	0.875	9.750	2.750	1.625	1.625	0.438	0.438
LCR-266	1.01	3/8-24 RH/LH	24.75	22.875	26.750	0.375	0.375	0.875	0.875	22.50	2.75	1.625	1.625	0.438	0.438
LCR-267	0.53	3/8-24 RH/LH	7.00	5.954	8.000	0.375	0.375	0.875	0.875	3.750	1.500	1.625	1.625	0.438	0.438
LCR-268	0.92	3/8-24 RH/LH	19.50	17.625	21.500	0.375	0.375	0.875	0.875	17.250	2.75	1.625	1.625	0.438	0.438
LCR-269	1.32	3/8-24 RH/LH	32.25	30.375	34.250	0.375	0.375	0.875	0.875	30.000	2.75	1.625	1.625	0.438	0.438
LCR-270	0.85	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.500	0.500	10.500	2.750	1.625	1.625	0.406	0.406
LCR-271	1.11	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.500	0.500	17.250	2.75	1.625	1.625	0.406	0.406
LCR-272	1.17	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.500	0.500	21.750	2.75	1.625	1.625	0.406	0.406
LCR-273	1.44	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.500	0.500	35.250	2.75	1.625	1.625	0.406	0.406
LCR-274	1.09	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.500	0.500	15.750	2.75	1.625	1.625	0.406	0.406
LCR-275	0.94	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.500	0.500	12.750	2.75	1.625	1.625	0.406	0.406
LCR-276	1.18	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.500	0.500	24.000	2.75	1.625	1.625	0.406	0.406
LCR-277	1.35	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.500	0.500	30.000	2.75	1.625	1.625	0.406	0.406
LCR-278	1.16	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.500	0.500	21.000	2.75	1.625	1.625	0.406	0.406
LCR-279	0.59	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.906	0.906	1.75	0.625	1.625	1.625	0.644	0.644
LCR-280	0.99	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.906	0.906	15.000	2.75	1.625	1.625	0.644	0.644
LCR-281	1.39	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.906	0.906	27.750	2.75	1.625	1.625	0.644	0.644
LCR-282	0.7	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.906	0.906	9.000	2.750	1.625	1.625	0.644	0.644
LCR-283	1.09	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.906	0.906	21.750	2.75	1.625	1.625	0.644	0.644
LCR-284	0.91	1/2-20	7.50	6.876	8.25	0.501	0.501	0.625	0.625	5.000	2.25	2.125	2.125	0.500	0.500
LCR-285	1.78	1/2-20	23.50	22.876	24.25	0.501	0.501	0.625	0.625	21.000	3.25	2.125	2.125	0.500	0.500
LCR-286	1.87	1/2-20	19.50	18.876	20.25	0.501	0.501	1.125	1.125	17.000	3.25	2.125	2.125	0.875	0.875
LCR-287	0.64	3/8-24 RH/LH	13.25	11.375	15.250	0.375	0.375	0.875	0.875	10.500	2.750	1.625	1.625	0.438	0.438
LCR-288	1.03	3/8-24 RH/LH	25.50	23.625	27.500	0.375	0.375	0.875	0.875	23.250	2.75	1.625	1.625	0.438	0.438
LCR-289	0.56	3/8-24 RH/LH	7.50	5.594	9.500	0.375	0.375	0.875	0.875	5.250	2.500	1.625	1.625	0.438	0.438
LCR-290	0.95	3/8-24 RH/LH	20.50	18.375	22.500	0.375	0.375	0.875	0.875	18.000	2.75	1.625	1.625	0.438	0.438
LCR-291	1.34	3/8-24 RH/LH	33.00	31.125	35.000	0.375	0.375	0.875	0.875	30.750	2.75	1.625	1.625	0.438	0.438
LCR-292	0.68	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.500	0.500	7.500	2.750	1.625	1.625	0.406	0.406
LCR-293	1.07	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.500	0.500	15.000	2.75	1.625	1.625	0.406	0.406
LCR-294	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.500	0.500	20.250	2.75	1.625	1.625	0.406	0.406
LCR-295	1.11	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.500	0.500	17.250	2.75	1.625	1.625	0.406	0.406
LCR-296	1.44	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.500	0.500	35.250	2.75	1.625	1.625	0.406	0.406
LCR-297	1.1	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.500	0.500	16.50	2.75	1.625	1.625	0.406	0.406
LCR-298	1.18	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.500	0.500	24.750	2.75	1.625	1.625	0.406	0.406
LCR-299	1.34	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.500	0.500	28.500	2.75	1.625	1.625	0.406	0.406
LCR-300	1.36	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.500	0.500	30.750	2.75	1.625	1.625	0.406	0.406
LCR-301	0.6	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.906	0.906	2.250	0.750	1.625	1.625	0.644	0.644
LCR-302	0.94	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.906	0.906	15.750	2.75	1.625	1.625	0.644	0.644
LCR-303	1.41	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.906	0.906	28.500	2.75	1.625	1.625	0.644	0.644
LCR-304	0.92	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.906	0.906	9.750	2.750	1.625	1.625	0.644	0.644
LCR-305	1.12	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.906	0.906	22.50	2.75	1.625	1.625	0.644	0.644
LCR-306	0.97	1/2-20	8.50	7.876	9.250	0.501	0.501	0.625	0.625	6.000	2.75	2.125	2.125	0.500	0.500
LCR-307	1.83	1/2-20	24.50	23.876	25.25	0.501	0.501	0.625	0.625	22.000	3.25	2.125	2.125	0.500	0.500
LCR-308	1.9	1/2-20	20.50	19.876	21.25	0.501	0.501	1.125	1.125	18.000	3.25	2.125	2.125	0.875	0.875
LCR-309	0.68	3/8-24 RH/LH	14.25	12.375	16.250	0.375	0.375	0.875	0.875	12.000	2.750	1.625	1.625	0.438	0.438
LCR-310	1.05	3/8-24 RH/LH	26.50	24.375	28.500	0.375	0.375	0.875	0.875	24.000	2.75	1.625	1.625	0.438	0.438
LCR-311	0.58	3/8-24 RH/LH	8.31	6.375	10.250	0.375	0.375	0.875	0.875	6.000	2.750	1.625	1.625	0.438	0.438
LCR-312	0.97	3/8-24 RH/LH	21.00	19.125	23.000	0.375	0.375	0.875	0.875	18.750	2.75	1.625	1.625	0.438	0.438
LCR-313	1.41	3/8-24 RH/LH	35.25	33.375	37.250	0.375	0.375	0.875	0.875	33.000	2.75	1.625	1.625	0.438	0.438
LCR-314	1.08	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.500	0.500	12.000	2.750	1.625	1.625	0.406	0.406
LCR-315	0.8	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.500	0.500	9.750	2.750	1.625	1.625	0.406	0.406
LCR-316	1.03	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.500	0.500	14.25	2.75	1.625	1.625	0.406	0.406
LCR-317	1.03	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.500	0.500	14.25	2.75	1.625	1.625	0.406	0.406
LCR-318	0.43	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.500	0.500	2.250	0.750	1.625	1.625	0.406	0.406
LCR-319	0.99	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.500	0.500	13.500	2.75	1.625	1.625	0.406	0.406
LCR-320	1.1	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.500	0.500	16.50	2.75	1.625	1.625	0.406	0.406
LCR-321	1.19	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.500	0.500	25.500	2.75	1.625	1.625	0.406	0.406
LCR-322	1.17	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.500	0.500	23.250	2.75	1.625	1.625	0.406	0.406
LCR-323	0.63	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.906	0.906	3.000	1.250	1.625	1.625	0.644	0.644
LCR-324	1.04	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.906	0.906	16.50	2.75	1.625	1.625	0.644	0.644
LCR-325	1.43	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.906	0.906	29.250	2.75	1.625	1.625	0.644	0.644
LCR-326	0.96	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.906	0.906	10.500	2.750	1.625	1.625	0.644	0.644
LCR-327	1.14	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.906	0.906	23.250	2.75	1.625	1.625	0.644	0.644
LCR-328	1.03	1/2-20	9.50	8.876	10.25	0.501	0.501	0.625	0.625	7.000	2.75	2.125	2.125	0.500	0.500
LCR-329	1.08	1/2-20	6.00	5.75	6.25	0.501	0.501	1.125	1.125	3.000	1.250	2.125	2.125	0.875	0.875
LCR-330	1.98	1/2-20	21.50	20.876	22.25	0.501	0.501	1.125	1.125	19.000	3.25	2.125	2.125	0.875	0.875
LCR-331	0.71	3/8-24 RH/LH	15.00	13.125	17.000	0.375	0.375	0.875	0.875	12.750	2.75	1.625	1.625	0.438	0.438
LCR-332	1.07	3/8-24 RH/LH	27.00	25.125	29.000	0.375	0.375	0.875	0.875	24.750	2.75	1.625	1.625	0.438	0.438
LCR-333	0.6	3/8-24 RH/LH	9.00	7.125	11.000	0.375	0.375	0.875	0.875	6.750	2.750	1.625	1.625	0.438	0.438
LCR-334	0.99	3/8-24 RH/LH	21.75	19.875	23.750	0.375	0.375	0.875	0.875	19.500	2.75	1.625	1.625	0.438	0.438
LCR-335	1.48	3/8-24 RH/LH	37.50	35.625	39.500	0.375	0.375	0.875	0.875	35.250	2.75	1.625	1.625	0.438	0.438
LCR-336	1.12	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.500	0.500	18.000	2.75	1.625	1.625	0.406	0.406
LCR-337	0.6	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.500	0.500	6.000	2.750	1.625	1.625	0.406	0.406
LCR-338	1.1	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.500	0.500	22.50	2.75	1.625	1.625	0.406	0.406
LCR-339	1.44	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.500	0.500	35.250	2.75	1.625	1.625	0.406	0.406
LCR-340	1.09	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.500	0.500	15.750	2.75	1.625	1.625	0.406	0.406
LCR-341	0.76	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.500	0.500	9.000	2.750	1.625	1.625	0.406	0.406
LCR-342	1.19	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.500	0.500	27.000	2.75	1.625	1.625	0.406	0.406
LCR-343	1.36	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.500	0.500	30.750	2.75	1.625	1.625	0.406	0.406
LCR-344	1.18	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.500	0.500	24.000	2.75	1.625	1.625	0.406	0.406
LCR-345	0.65	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.906	0.906	3.750	1.500	1.625	1.625	0.644	0.644
LCR-346	1.06	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.906	0.906	17.250	2.75	1.625	1.625	0.644	0.644
LCR-347	1.45	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.906	0.906	30.000	2.75	1.625	1.625	0.644	0.644
LCR-348	1.16	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.906	0.906	12.000	2.750	1.625	1.625	0.644	0.644
LCR-349	1.16	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.906	0.906	24.000	2.75	1.625	1.625	0.644	0.644
LCR-350	1.07	1/2-20	10.50	9.876	11.250	0.501	0.501	0.625	0.625	8.000	3.25	2.125	2.125	0.500	0.500
LCR-351	1.14	1/2-20	6.50	5.876	7.25	0.501	0.501	1.125	1.125	4.000	1.75	2.125	2.125	0.875	0.875
LCR-352	2.01	1/2-20	22.50	21.876	23.25	0.501	0.501	1.125	1.125	20.000	3.25	2.125	2.125	0.875	0.875

Control de calidad

Inspección de cada unidad antes del envío

🔩

Raw Material Inspection

Material certifications verified. Composition confirmed by spectrometer before machining begins.

🔍

Thread Gauge Inspection

100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.

⚖️

Load Capacity Test

Static and dynamic load tests run on representative samples from each production batch.

📏

Dimensional Measurement

CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.

🔬

Surface Inspection

Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.

🔄

Articulation Test

Misalignment angle and torque measured to confirm liner performance meets specification.

🏆

Heat Treatment Verify

Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.

📋

Batch Documentation

Full traceability from raw material heat number to finished part. COC and inspection reports available.

Applications

Where Linkage Rods Are Used

Mechanical Control Linkages

Connecting rods transfer motion between levers, shafts, actuators, and control arms while rod ends accommodate angular change at each attachment. Match overall length and end geometry to the mechanism.

Steering, Suspension & Stabilizer Systems

Preassembled or fabricated linkage rods can be used in steering and suspension systems where accurate length and repeatable end connections are important. Check joint orientation and travel before final tightening.

Agricultural and Industrial Equipment

Longer linkage assemblies are common in machine controls, agricultural mechanisms, and industrial equipment. Select the race and rod-end material for the expected oscillation, contamination, load, and maintenance plan.

Productos relacionados

Más de la serie Biela de conexión

All Products →

LCR-345 Biela de conexión de eslabonamiento 5.75 in, rosca derecha/izquierda 3/8-24, roscas de espárrago de cabeza de bieleta 3/8-24, pista de nailon

LCR-345

View Product →

LCR-344 Biela de conexión de eslabonamiento 26.00 in, rosca derecha/izquierda 3/8-24, diámetros interiores 3/8 in, pista de bronce

LCR-344

View Product →

LCR-343 Biela de conexión de eslabonamiento 32.75 in, rosca derecha/izquierda 3/8-24, diámetros interiores 3/8 in, pista de acero

LCR-343

View Product →

LCR-342 Biela de conexión de eslabonamiento 29.00 in, rosca derecha/izquierda 3/8-24, diámetros interiores 3/8 in, pista de acero

LCR-342

View Product →

Solicitar presupuesto

Request a Quote for the Biela de conexión

Share your part number, required quantity, and any special material or packaging requirements. We respond within 24 hours.

✉

[email protected]

⚡ Reply in 24 hrs

🎁 Free samples

🔒 NDA available

📦 MOQ from 50 pcs

FAQ

Biela de conexión — Preguntas frecuentes

¿Para qué aplicaciones está diseñado el LCR-090?

El LCR-090 es una bieleta de conexión de longitud nominal de 18.75 in para enlaces mecánicos ajustables, barras de control y conjuntos de transferencia de movimiento, con una sección central roscada RH/LH de 3/8-24 y una conexión de horquilla con orificio para pasador de 3/8 in en cada extremo.

¿Cómo se ajusta la longitud instalada del LCR-090?

El LCR-090 tiene un rango de ajuste general L1 de 16.875–20.750 in, con una longitud de referencia L2 de 16.50 in y una dimensión típica L3 de 2.75 in, lo que proporciona aproximadamente 3.9 in de ajuste total de longitud mediante la sección central roscada RH/LH de 3/8-24.

¿Qué estilo de extremo utiliza el LCR-090?

Cada extremo del LCR-090 es una conexión de horquilla con orificio para pasador de 3/8 in. La ficha de esta configuración no especifica pasadores ni herrajes incluidos, así que confirme los requisitos de pasador de horquilla y herrajes con SYZ al pedir.

¿El LCR-090 está disponible en algo además de acero estándar?

La construcción estándar es de acero al carbono. También se ofrece acero cromoly, con aleación de aluminio y acero inoxidable disponibles como materiales opcionales — confirme el material, el acabado y el sentido de la rosca con SYZ antes de pedir.

¿El LCR-090 se ajusta como un tirante tensor?

Sí. Como la configuración RH/LH de 3/8-24 empareja una rosca derecha en un extremo con una rosca izquierda en el otro, girar el cuerpo central cambia la longitud instalada al estilo de un tirante tensor, sin desenroscar ninguno de los extremos.

¿Se puede personalizar el LCR-090 para un proyecto de bieletas OEM?

Sí. SYZ puede ajustar la longitud nominal, el tamaño/sentido de la rosca, el estilo de extremo y el material para proyectos de enlaces OEM o personalizados — proporcione su rango L1 objetivo y la rosca de montaje al solicitar una cotización para el LCR-090.

LCR-090 Biela de conexión de eslabonamiento 18.75 in, rosca derecha/izquierda 3/8-24, orificios para pasador de 3/8 in

Biela de conexión · LCR-090

50 pcs

Min. Order

Free Sample Get a Quote →
