lcr-260-linkage-connecting-rod-10-25-in-3-8-24-rh-lh-thread-3-8-24-rod-end-stud-threads-steel-race

10.25 in / 3/8-24 RH/LH

BIELA DE CONEXIÓN

LCR-260 Biela de conexión de eslabonamiento 10.25 in, rosca derecha/izquierda 3/8-24, roscas de espárrago de cabeza de rótula 3/8-24, pista de acero

Name: LCR-260 Biela de conexión de eslabonamiento 10.25 in, rosca derecha/izquierda 3/8-24, roscas de espárrago de cabeza de rótula 3/8-24, pista de acero
Brand: SYZ Rod Ends
SKU: LCR-260
Availability: InStock

N.º de pieza: LCR-260 · Adjustable motion-transfer assembly series

✓ Certificado ISO 9001

✓ Verificado por SGS

✓ Más de 26 años como fábrica

✓ Listo para OEM / ODM

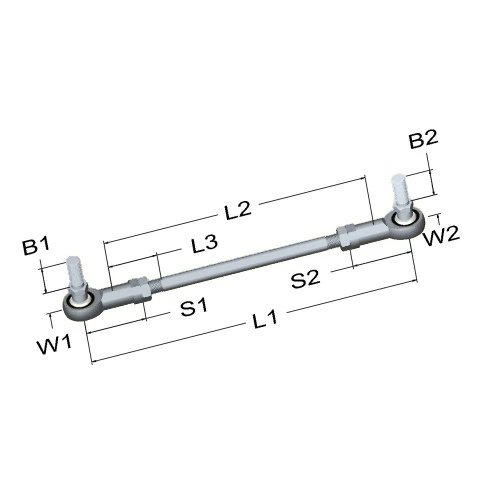

Thread: 3/8-24 RH/LH

Nominal Length: 10.25 in.

L1 Min / Max: 9.626–10.75 in.

A1 / A2: 0.375 / 0.375 in.

B1 / B2: 0.906 / 0.906 in.

W1 / W2: 0.644 / 0.644 in.

Peso

0.68 lbs

Material

Carbon steel; chromoly steel; aluminum alloy steel optional; stainless steel optional

Solicitar presupuesto →

Solicitar muestra gratuita Volver a la página de especificaciones

⚡ Respuesta habitual en 24 horas

MOQ:50 pcs / model

Plazo de entrega:7–15 days

Muestra:Gratis (sin flete)

Pago:T/T · PayPal · L/C

Descripción general

Biela de conexión — Descripción general del producto

LCR-260 es una biela de conexión de eslabonamiento de 10.25 in para eslabonamientos mecánicos ajustables, bielas de mando y conjuntos de transferencia de movimiento. El conjunto utiliza geometría de rosca derecha/izquierda 3/8-24 con espárragos roscados de cabeza de rótula 3/8-24 y rodamientos esféricos de cabeza de rótula con pista de acero. Las referencias dimensionales son L1 9.626-10.75 in, L2 8.250 in de referencia, L3 2.750 in típico, A1/A2 0.375/0.375 in, B1/B2 0.906/0.906 in, S1/S2 1.625/1.625 in y W1/W2 0.644/0.644 in. Las opciones de material son acero al carbono, acero cromoly, acero de aleación de aluminio opcional y acero inoxidable opcional. Confirme el material final, el acabado, el sentido de la rosca y la configuración de herrajes con SYZ al solicitar una cotización.

Tabla de medidas

Biela de conexión — Gama completa de medidas

Todas las medidas disponibles de la serie Biela de conexión. ¿No encuentra su medida? Contáctenos para medidas personalizadas.

Referencia	Weight (lbs)	Rosca	Longitud nominal	L1 Min	L1 Max	A1	A2	B1	B2	L2 (ref)	L3 (typ)	S1	S2	W1	W2
LCR-001	0.73	3/8-24 RH/LH	15.75	13.875	17.750	0.375	0.375	0.875	0.875	13.500	2.75	1.625	1.625	0.438	0.438
LCR-002	1.1	3/8-24 RH/LH	27.75	25.875	29.750	0.375	0.375	0.875	0.875	25.500	2.75	1.625	1.625	0.438	0.438
LCR-003	0.63	3/8-24 RH/LH	9.75	7.875	11.750	0.375	0.375	0.875	0.875	7.500	2.750	1.625	1.625	0.438	0.438
LCR-004	1.02	3/8-24 RH/LH	22.50	20.625	24.500	0.375	0.375	0.875	0.875	20.250	2.75	1.625	1.625	0.438	0.438
LCR-005	0.85	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.500	0.500	10.500	2.750	1.625	1.625	0.406	0.406
LCR-006	0.48	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.500	0.500	3.750	1.500	1.625	1.625	0.406	0.406
LCR-007	1.03	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.500	0.500	14.25	2.75	1.625	1.625	0.406	0.406
LCR-008	1.17	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.500	0.500	21.750	2.75	1.625	1.625	0.406	0.406
LCR-009	1.13	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.500	0.500	18.750	2.75	1.625	1.625	0.406	0.406
LCR-010	0.45	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.500	0.500	3.000	1.250	1.625	1.625	0.406	0.406
LCR-011	1.14	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.500	0.500	19.500	2.75	1.625	1.625	0.406	0.406
LCR-012	1.19	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.500	0.500	25.500	2.75	1.625	1.625	0.406	0.406
LCR-013	1.35	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.500	0.500	29.250	2.75	1.625	1.625	0.406	0.406
LCR-014	1.18	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.500	0.500	24.750	2.75	1.625	1.625	0.406	0.406
LCR-015	0.69	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.906	0.906	5.250	2.500	1.625	1.625	0.644	0.644
LCR-016	1.09	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.906	0.906	18.000	2.75	1.625	1.625	0.644	0.644
LCR-017	1.48	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.906	0.906	30.750	2.75	1.625	1.625	0.644	0.644
LCR-018	0.81	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.906	0.906	12.750	2.75	1.625	1.625	0.644	0.644
LCR-019	1.19	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.906	0.906	24.750	2.75	1.625	1.625	0.644	0.644
LCR-020	1.07	1/2-20	11.50	10.876	12.25	0.501	0.501	0.625	0.625	9.000	3.25	2.125	2.125	0.500	0.500
LCR-021	1.19	1/2-20	7.50	6.876	8.25	0.501	0.501	1.125	1.125	5.000	2.25	2.125	2.125	0.875	0.875
LCR-022	2.07	1/2-20	23.50	22.876	24.25	0.501	0.501	1.125	1.125	21.000	3.25	2.125	2.125	0.875	0.875
LCR-023	0.75	3/8-24 RH/LH	16.50	14.625	18.500	0.375	0.375	0.875	0.875	14.25	2.75	1.625	1.625	0.438	0.438
LCR-024	1.14	3/8-24 RH/LH	29.25	27.375	31.250	0.375	0.375	0.875	0.875	27.000	2.75	1.625	1.625	0.438	0.438
LCR-025	0.65	3/8-24 RH/LH	10.50	8.625	12.500	0.375	0.375	0.875	0.875	8.250	2.750	1.625	1.625	0.438	0.438
LCR-026	1.04	3/8-24 RH/LH	23.25	21.375	25.25	0.375	0.375	0.875	0.875	21.000	2.75	1.625	1.625	0.438	0.438
LCR-027	0.68	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.500	0.500	7.500	2.750	1.625	1.625	0.406	0.406
LCR-028	0.48	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.500	0.500	3.750	1.500	1.625	1.625	0.406	0.406
LCR-029	0.64	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.500	0.500	6.750	2.750	1.625	1.625	0.406	0.406
LCR-030	1.13	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.500	0.500	18.750	2.75	1.625	1.625	0.406	0.406
LCR-031	1.36	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.500	0.500	33.000	2.75	1.625	1.625	0.406	0.406
LCR-032	0.56	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.500	0.500	5.250	2.500	1.625	1.625	0.406	0.406
LCR-033	1.1	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.500	0.500	16.50	2.75	1.625	1.625	0.406	0.406
LCR-034	1.34	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.500	0.500	27.750	2.75	1.625	1.625	0.406	0.406
LCR-035	1.35	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.500	0.500	30.000	2.75	1.625	1.625	0.406	0.406
LCR-036	1.19	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.500	0.500	25.500	2.75	1.625	1.625	0.406	0.406
LCR-037	0.72	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.906	0.906	6.000	2.750	1.625	1.625	0.644	0.644
LCR-038	1.11	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.906	0.906	18.750	2.75	1.625	1.625	0.644	0.644
LCR-039	1.55	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.906	0.906	33.000	2.75	1.625	1.625	0.644	0.644
LCR-040	0.84	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.906	0.906	13.500	2.75	1.625	1.625	0.644	0.644
LCR-041	1.21	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.906	0.906	25.500	2.75	1.625	1.625	0.644	0.644
LCR-042	1.18	1/2-20	12.50	11.876	13.25	0.501	0.501	0.625	0.625	10.000	3.25	2.125	2.125	0.500	0.500
LCR-043	1.25	1/2-20	8.50	7.876	9.250	0.501	0.501	1.125	1.125	6.000	2.75	2.125	2.125	0.875	0.875
LCR-044	2.12	1/2-20	24.50	23.876	25.25	0.501	0.501	1.125	1.125	22.000	3.25	2.125	2.125	0.875	0.875
LCR-045	0.39	3/8-24 RH/LH	6.00	5.954	6.000	0.375	0.375	0.875	0.875	1.75	0.625	1.625	1.625	0.438	0.438
LCR-046	0.78	3/8-24 RH/LH	17.25	15.375	19.25	0.375	0.375	0.875	0.875	15.000	2.75	1.625	1.625	0.438	0.438
LCR-047	1.17	3/8-24 RH/LH	30.00	28.125	32.000	0.375	0.375	0.875	0.875	27.750	2.75	1.625	1.625	0.438	0.438
LCR-048	0.67	3/8-24 RH/LH	11.31	9.375	13.250	0.375	0.375	0.875	0.875	9.000	2.750	1.625	1.625	0.438	0.438
LCR-049	1.06	3/8-24 RH/LH	24.00	22.125	26.000	0.375	0.375	0.875	0.875	21.750	2.75	1.625	1.625	0.438	0.438
LCR-050	1.08	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.500	0.500	12.000	2.750	1.625	1.625	0.406	0.406
LCR-051	0.48	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.500	0.500	3.750	1.500	1.625	1.625	0.406	0.406
LCR-052	1.11	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.500	0.500	17.250	2.75	1.625	1.625	0.406	0.406
LCR-053	0.6	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.500	0.500	6.000	2.750	1.625	1.625	0.406	0.406
LCR-054	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.500	0.500	20.250	2.75	1.625	1.625	0.406	0.406
LCR-055	0.45	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.500	0.500	3.000	1.250	1.625	1.625	0.406	0.406
LCR-056	1.16	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.500	0.500	21.000	2.75	1.625	1.625	0.406	0.406
LCR-057	1.14	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.500	0.500	19.500	2.75	1.625	1.625	0.406	0.406
LCR-058	1.19	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.500	0.500	27.000	2.75	1.625	1.625	0.406	0.406
LCR-059	1.19	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.500	0.500	27.000	2.75	1.625	1.625	0.406	0.406
LCR-060	0.74	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.906	0.906	6.750	2.750	1.625	1.625	0.644	0.644
LCR-061	1.04	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.906	0.906	19.500	2.75	1.625	1.625	0.644	0.644
LCR-062	1.62	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.906	0.906	35.250	2.75	1.625	1.625	0.644	0.644
LCR-063	0.86	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.906	0.906	14.25	2.75	1.625	1.625	0.644	0.644
LCR-064	1.25	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.906	0.906	27.000	2.75	1.625	1.625	0.644	0.644
LCR-065	1.24	1/2-20	13.50	12.876	14.25	0.501	0.501	0.625	0.625	11.000	3.25	2.125	2.125	0.500	0.500
LCR-066	1.31	1/2-20	9.50	8.876	10.25	0.501	0.501	1.125	1.125	7.000	2.75	2.125	2.125	0.875	0.875
LCR-067	0.41	3/8-24 RH/LH	6.25	5.954	6.500	0.375	0.375	0.875	0.875	2.250	0.750	1.625	1.625	0.438	0.438
LCR-068	0.8	3/8-24 RH/LH	18.00	16.125	20.000	0.375	0.375	0.875	0.875	15.750	2.75	1.625	1.625	0.438	0.438
LCR-069	1.19	3/8-24 RH/LH	30.75	28.500	2.75	0.375	0.375	0.875	0.875	28.500	2.75	1.625	1.625	0.438	0.438
LCR-070	0.69	3/8-24 RH/LH	12.75	10.875	14.750	0.375	0.375	0.875	0.875	9.750	2.750	1.625	1.625	0.438	0.438
LCR-071	1.09	3/8-24 RH/LH	24.75	22.875	26.750	0.375	0.375	0.875	0.875	22.50	2.75	1.625	1.625	0.438	0.438
LCR-072	0.85	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.500	0.500	10.500	2.750	1.625	1.625	0.406	0.406
LCR-073	0.6	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.500	0.500	6.000	2.750	1.625	1.625	0.406	0.406
LCR-074	0.72	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.500	0.500	8.250	2.750	1.625	1.625	0.406	0.406
LCR-075	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.500	0.500	20.250	2.75	1.625	1.625	0.406	0.406
LCR-076	0.43	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.500	0.500	2.250	0.750	1.625	1.625	0.406	0.406
LCR-077	0.56	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.500	0.500	5.250	2.500	1.625	1.625	0.406	0.406
LCR-078	1.14	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.500	0.500	19.500	2.75	1.625	1.625	0.406	0.406
LCR-079	1.16	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.500	0.500	21.000	2.75	1.625	1.625	0.406	0.406
LCR-080	0.94	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.500	0.500	12.750	2.75	1.625	1.625	0.406	0.406
LCR-081	1.34	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.500	0.500	27.750	2.75	1.625	1.625	0.406	0.406
LCR-082	0.92	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.906	0.906	7.500	2.750	1.625	1.625	0.644	0.644
LCR-083	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.906	0.906	20.250	2.75	1.625	1.625	0.644	0.644
LCR-084	0.48	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.906	0.906	1.75	0.625	1.625	1.625	0.644	0.644
LCR-085	0.88	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.906	0.906	15.000	2.75	1.625	1.625	0.644	0.644
LCR-086	1.27	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.906	0.906	27.750	2.75	1.625	1.625	0.644	0.644
LCR-087	1.29	1/2-20	14.50	13.876	15.25	0.501	0.501	0.625	0.625	12.000	3.25	2.125	2.125	0.500	0.500
LCR-088	1.36	1/2-20	10.50	9.876	11.250	0.501	0.501	1.125	1.125	8.000	3.25	2.125	2.125	0.875	0.875
LCR-089	0.43	3/8-24 RH/LH	6.50	5.9540	7.2500	0.375	0.375	0.875	0.875	3.000	1.250	1.625	1.625	0.438	0.438
LCR-090	0.82	3/8-24 RH/LH	18.75	16.875	20.750	0.375	0.375	0.875	0.875	16.50	2.75	1.625	1.625	0.438	0.438
LCR-091	1.21	3/8-24 RH/LH	31.50	29.625	33.500	0.375	0.375	0.875	0.875	29.250	2.75	1.625	1.625	0.438	0.438
LCR-092	0.72	3/8-24 RH/LH	13.25	11.375	15.250	0.375	0.375	0.875	0.875	10.500	2.750	1.625	1.625	0.438	0.438
LCR-093	1.11	3/8-24 RH/LH	25.50	23.625	27.500	0.375	0.375	0.875	0.875	23.250	2.75	1.625	1.625	0.438	0.438
LCR-094	0.68	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.500	0.500	7.500	2.750	1.625	1.625	0.406	0.406
LCR-095	0.64	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.500	0.500	6.750	2.750	1.625	1.625	0.406	0.406
LCR-096	1.03	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.500	0.500	14.25	2.75	1.625	1.625	0.406	0.406
LCR-097	0.64	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.500	0.500	6.750	2.750	1.625	1.625	0.406	0.406
LCR-098	1.1	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.500	0.500	22.50	2.75	1.625	1.625	0.406	0.406
LCR-099	0.45	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.500	0.500	3.000	1.250	1.625	1.625	0.406	0.406
LCR-100	0.94	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.500	0.500	12.750	2.75	1.625	1.625	0.406	0.406
LCR-101	1.19	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.500	0.500	27.000	2.75	1.625	1.625	0.406	0.406
LCR-102	1.34	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.500	0.500	27.750	2.75	1.625	1.625	0.406	0.406
LCR-103	1.34	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.500	0.500	28.500	2.75	1.625	1.625	0.406	0.406
LCR-104	0.79	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.906	0.906	8.250	2.750	1.625	1.625	0.644	0.644
LCR-105	1.53	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.906	0.906	21.000	2.75	1.625	1.625	0.644	0.644
LCR-106	0.49	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.906	0.906	2.250	0.750	1.625	1.625	0.644	0.644
LCR-107	0.83	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.906	0.906	15.750	2.75	1.625	1.625	0.644	0.644
LCR-108	1.3	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.906	0.906	28.500	2.75	1.625	1.625	0.644	0.644
LCR-109	1.36	1/2-20	15.50	14.876	16.25	0.501	0.501	0.625	0.625	13.000	3.25	2.125	2.125	0.500	0.500
LCR-110	1.36	1/2-20	11.50	10.876	12.25	0.501	0.501	1.125	1.125	9.000	3.25	2.125	2.125	0.875	0.875
LCR-111	0.45	3/8-24 RH/LH	7.00	5.954	8.000	0.375	0.375	0.875	0.875	3.750	1.500	1.625	1.625	0.438	0.438
LCR-112	0.84	3/8-24 RH/LH	19.50	17.625	21.500	0.375	0.375	0.875	0.875	17.250	2.75	1.625	1.625	0.438	0.438
LCR-113	1.24	3/8-24 RH/LH	32.25	30.375	34.250	0.375	0.375	0.875	0.875	30.000	2.75	1.625	1.625	0.438	0.438
LCR-114	0.76	3/8-24 RH/LH	14.25	12.375	16.250	0.375	0.375	0.875	0.875	12.000	2.750	1.625	1.625	0.438	0.438
LCR-115	1.13	3/8-24 RH/LH	26.50	24.375	28.500	0.375	0.375	0.875	0.875	24.000	2.75	1.625	1.625	0.438	0.438
LCR-116	1.08	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.500	0.500	12.000	2.750	1.625	1.625	0.406	0.406
LCR-117	0.72	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.500	0.500	8.250	2.750	1.625	1.625	0.406	0.406
LCR-118	1.13	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.500	0.500	18.750	2.75	1.625	1.625	0.406	0.406
LCR-119	0.72	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.500	0.500	8.250	2.750	1.625	1.625	0.406	0.406
LCR-120	1.44	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.500	0.500	35.250	2.75	1.625	1.625	0.406	0.406
LCR-121	0.56	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.500	0.500	5.250	2.500	1.625	1.625	0.406	0.406
LCR-122	1.17	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.500	0.500	23.250	2.75	1.625	1.625	0.406	0.406
LCR-123	1.34	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.500	0.500	28.500	2.75	1.625	1.625	0.406	0.406
LCR-124	0.99	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.500	0.500	13.500	2.75	1.625	1.625	0.406	0.406
LCR-125	1.35	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.500	0.500	29.250	2.75	1.625	1.625	0.406	0.406
LCR-126	0.81	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.906	0.906	9.000	2.750	1.625	1.625	0.644	0.644
LCR-127	1.2	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.906	0.906	21.750	2.75	1.625	1.625	0.644	0.644
LCR-128	0.51	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.906	0.906	3.000	1.250	1.625	1.625	0.644	0.644
LCR-129	0.93	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.906	0.906	16.50	2.75	1.625	1.625	0.644	0.644
LCR-130	1.32	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.906	0.906	29.250	2.75	1.625	1.625	0.644	0.644
LCR-131	1.4	1/2-20	16.50	15.876	17.25	0.501	0.501	0.625	0.625	14.000	3.25	2.125	2.125	0.500	0.500
LCR-132	1.46	1/2-20	12.50	11.876	13.25	0.501	0.501	1.125	1.125	10.000	3.25	2.125	2.125	0.875	0.875
LCR-133	0.48	3/8-24 RH/LH	7.50	5.594	9.500	0.375	0.375	0.875	0.875	5.250	2.500	1.625	1.625	0.438	0.438
LCR-134	0.87	3/8-24 RH/LH	20.50	18.375	22.500	0.375	0.375	0.875	0.875	18.000	2.75	1.625	1.625	0.438	0.438
LCR-135	1.26	3/8-24 RH/LH	33.00	31.125	35.000	0.375	0.375	0.875	0.875	30.750	2.75	1.625	1.625	0.438	0.438
LCR-136	0.79	3/8-24 RH/LH	15.00	13.125	17.000	0.375	0.375	0.875	0.875	12.750	2.75	1.625	1.625	0.438	0.438
LCR-137	1.15	3/8-24 RH/LH	27.00	25.125	29.000	0.375	0.375	0.875	0.875	24.750	2.75	1.625	1.625	0.438	0.438
LCR-138	1.12	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.500	0.500	18.000	2.75	1.625	1.625	0.406	0.406
LCR-139	0.6	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.500	0.500	6.000	2.750	1.625	1.625	0.406	0.406
LCR-140	1.07	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.500	0.500	15.000	2.75	1.625	1.625	0.406	0.406
LCR-141	1.1	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.500	0.500	22.50	2.75	1.625	1.625	0.406	0.406
LCR-142	1.17	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.500	0.500	21.750	2.75	1.625	1.625	0.406	0.406
LCR-143	0.45	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.500	0.500	3.000	1.250	1.625	1.625	0.406	0.406
LCR-144	1.18	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.500	0.500	24.000	2.75	1.625	1.625	0.406	0.406
LCR-145	1.34	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.500	0.500	27.750	2.75	1.625	1.625	0.406	0.406
LCR-146	1.36	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.500	0.500	30.750	2.75	1.625	1.625	0.406	0.406
LCR-147	1.35	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.500	0.500	30.000	2.75	1.625	1.625	0.406	0.406
LCR-148	1.03	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.906	0.906	9.750	2.750	1.625	1.625	0.644	0.644
LCR-149	1.23	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.906	0.906	22.50	2.75	1.625	1.625	0.644	0.644
LCR-150	0.54	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.906	0.906	3.750	1.500	1.625	1.625	0.644	0.644
LCR-151	0.95	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.906	0.906	17.250	2.75	1.625	1.625	0.644	0.644
LCR-152	1.34	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.906	0.906	30.000	2.75	1.625	1.625	0.644	0.644
LCR-153	1.47	1/2-20	17.50	16.876	18.250	0.501	0.501	0.625	0.625	15.000	3.25	2.125	2.125	0.500	0.500
LCR-154	1.52	1/2-20	13.50	12.876	14.25	0.501	0.501	1.125	1.125	11.000	3.25	2.125	2.125	0.875	0.875
LCR-155	0.5	3/8-24 RH/LH	8.31	6.375	10.250	0.375	0.375	0.875	0.875	6.000	2.750	1.625	1.625	0.438	0.438
LCR-156	0.89	3/8-24 RH/LH	21.00	19.125	23.000	0.375	0.375	0.875	0.875	18.750	2.75	1.625	1.625	0.438	0.438
LCR-157	1.33	3/8-24 RH/LH	35.25	33.375	37.250	0.375	0.375	0.875	0.875	33.000	2.75	1.625	1.625	0.438	0.438
LCR-158	0.81	3/8-24 RH/LH	15.75	13.875	17.750	0.375	0.375	0.875	0.875	13.500	2.75	1.625	1.625	0.438	0.438
LCR-159	1.18	3/8-24 RH/LH	27.75	25.875	29.750	0.375	0.375	0.875	0.875	25.500	2.75	1.625	1.625	0.438	0.438
LCR-160	0.85	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.500	0.500	10.500	2.750	1.625	1.625	0.406	0.406
LCR-161	0.64	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.500	0.500	6.750	2.750	1.625	1.625	0.406	0.406
LCR-162	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.500	0.500	20.250	2.75	1.625	1.625	0.406	0.406
LCR-163	1.17	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.500	0.500	21.750	2.75	1.625	1.625	0.406	0.406
LCR-164	0.43	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.500	0.500	2.250	0.750	1.625	1.625	0.406	0.406
LCR-165	0.56	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.500	0.500	5.250	2.500	1.625	1.625	0.406	0.406
LCR-166	1.18	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.500	0.500	24.750	2.75	1.625	1.625	0.406	0.406
LCR-167	1.35	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.500	0.500	29.250	2.75	1.625	1.625	0.406	0.406
LCR-168	1.34	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.500	0.500	28.500	2.75	1.625	1.625	0.406	0.406
LCR-169	1.36	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.500	0.500	30.750	2.75	1.625	1.625	0.406	0.406
LCR-170	1.07	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.906	0.906	10.500	2.750	1.625	1.625	0.644	0.644
LCR-171	1.25	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.906	0.906	23.250	2.75	1.625	1.625	0.644	0.644
LCR-172	0.58	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.906	0.906	5.250	2.500	1.625	1.625	0.644	0.644
LCR-173	0.97	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.906	0.906	18.000	2.75	1.625	1.625	0.644	0.644
LCR-174	1.37	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.906	0.906	30.750	2.75	1.625	1.625	0.644	0.644
LCR-175	1.51	1/2-20	18.50	17.876	19.250	0.501	0.501	0.625	0.625	16.000	3.25	2.125	2.125	0.500	0.500
LCR-176	1.57	1/2-20	14.50	13.876	15.25	0.501	0.501	1.125	1.125	12.000	3.25	2.125	2.125	0.875	0.875
LCR-177	0.52	3/8-24 RH/LH	9.00	7.125	11.000	0.375	0.375	0.875	0.875	6.750	2.750	1.625	1.625	0.438	0.438
LCR-178	0.91	3/8-24 RH/LH	21.75	19.875	23.750	0.375	0.375	0.875	0.875	19.500	2.75	1.625	1.625	0.438	0.438
LCR-179	1.4	3/8-24 RH/LH	37.50	35.625	39.500	0.375	0.375	0.875	0.875	35.250	2.75	1.625	1.625	0.438	0.438
LCR-180	0.83	3/8-24 RH/LH	16.50	14.625	18.500	0.375	0.375	0.875	0.875	14.25	2.75	1.625	1.625	0.438	0.438
LCR-181	1.22	3/8-24 RH/LH	29.25	27.375	31.250	0.375	0.375	0.875	0.875	27.000	2.75	1.625	1.625	0.438	0.438
LCR-182	1.12	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.500	0.500	18.000	2.75	1.625	1.625	0.406	0.406
LCR-183	1.07	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.500	0.500	15.000	2.75	1.625	1.625	0.406	0.406
LCR-184	0.8	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.500	0.500	9.750	2.750	1.625	1.625	0.406	0.406
LCR-185	1.36	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.500	0.500	33.000	2.75	1.625	1.625	0.406	0.406
LCR-186	1.09	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.500	0.500	15.750	2.75	1.625	1.625	0.406	0.406
LCR-187	0.76	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.500	0.500	9.000	2.750	1.625	1.625	0.406	0.406
LCR-188	1.16	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.500	0.500	21.000	2.75	1.625	1.625	0.406	0.406
LCR-189	0.76	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.500	0.500	9.000	2.750	1.625	1.625	0.406	0.406
LCR-190	1.1	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.500	0.500	16.50	2.75	1.625	1.625	0.406	0.406
LCR-191	0.42	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.500	0.500	1.75	0.625	1.625	1.625	0.406	0.406
LCR-192	1.27	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.906	0.906	12.000	2.750	1.625	1.625	0.644	0.644
LCR-193	1.27	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.906	0.906	24.000	2.75	1.625	1.625	0.644	0.644
LCR-194	0.61	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.906	0.906	6.000	2.750	1.625	1.625	0.644	0.644
LCR-195	1	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.906	0.906	18.750	2.75	1.625	1.625	0.644	0.644
LCR-196	1.44	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.906	0.906	33.000	2.75	1.625	1.625	0.644	0.644
LCR-197	1.58	1/2-20	19.50	18.876	20.25	0.501	0.501	0.625	0.625	17.000	3.25	2.125	2.125	0.500	0.500
LCR-198	1.64	1/2-20	15.50	14.876	16.25	0.501	0.501	1.125	1.125	13.000	3.25	2.125	2.125	0.875	0.875
LCR-199	0.55	3/8-24 RH/LH	9.75	7.875	11.750	0.375	0.375	0.875	0.875	7.500	2.750	1.625	1.625	0.438	0.438
LCR-200	0.94	3/8-24 RH/LH	22.50	20.625	24.500	0.375	0.375	0.875	0.875	20.250	2.75	1.625	1.625	0.438	0.438
LCR-201	0.47	3/8-24 RH/LH	6.00	5.954	6.000	0.375	0.375	0.875	0.875	1.75	0.625	1.625	1.625	0.438	0.438
LCR-202	0.86	3/8-24 RH/LH	17.25	15.375	19.25	0.375	0.375	0.875	0.875	15.000	2.75	1.625	1.625	0.438	0.438
LCR-203	1.25	3/8-24 RH/LH	30.00	28.125	32.000	0.375	0.375	0.875	0.875	27.750	2.75	1.625	1.625	0.438	0.438
LCR-204	0.68	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.500	0.500	7.500	2.750	1.625	1.625	0.406	0.406
LCR-205	0.72	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.500	0.500	8.250	2.750	1.625	1.625	0.406	0.406
LCR-206	1.13	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.500	0.500	18.750	2.75	1.625	1.625	0.406	0.406
LCR-207	1.07	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.500	0.500	15.000	2.75	1.625	1.625	0.406	0.406
LCR-208	1.09	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.500	0.500	15.750	2.75	1.625	1.625	0.406	0.406
LCR-209	0.76	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.500	0.500	9.000	2.750	1.625	1.625	0.406	0.406
LCR-210	0.99	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.500	0.500	13.500	2.75	1.625	1.625	0.406	0.406
LCR-211	1.17	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.500	0.500	23.250	2.75	1.625	1.625	0.406	0.406
LCR-212	1.35	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.500	0.500	29.250	2.75	1.625	1.625	0.406	0.406
LCR-213	0.42	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.500	0.500	1.75	0.625	1.625	1.625	0.406	0.406
LCR-214	0.92	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.906	0.906	12.750	2.75	1.625	1.625	0.644	0.644
LCR-215	1.3	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.906	0.906	24.750	2.75	1.625	1.625	0.644	0.644
LCR-216	0.63	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.906	0.906	6.750	2.750	1.625	1.625	0.644	0.644
LCR-217	0.92	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.906	0.906	19.500	2.75	1.625	1.625	0.644	0.644
LCR-218	1.51	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.906	0.906	35.250	2.75	1.625	1.625	0.644	0.644
LCR-219	1.62	1/2-20	20.50	19.876	21.25	0.501	0.501	0.625	0.625	18.000	3.25	2.125	2.125	0.500	0.500
LCR-220	1.68	1/2-20	16.50	15.876	17.25	0.501	0.501	1.125	1.125	14.000	3.25	2.125	2.125	0.875	0.875
LCR-221	0.57	3/8-24 RH/LH	10.50	8.625	12.500	0.375	0.375	0.875	0.875	8.250	2.750	1.625	1.625	0.438	0.438
LCR-222	0.96	3/8-24 RH/LH	23.25	21.375	25.25	0.375	0.375	0.875	0.875	21.000	2.75	1.625	1.625	0.438	0.438
LCR-223	0.49	3/8-24 RH/LH	6.25	5.954	6.500	0.375	0.375	0.875	0.875	2.250	0.750	1.625	1.625	0.438	0.438
LCR-224	0.88	3/8-24 RH/LH	18.00	16.125	20.000	0.375	0.375	0.875	0.875	15.750	2.75	1.625	1.625	0.438	0.438
LCR-225	1.27	3/8-24 RH/LH	30.75	28.500	2.75	0.375	0.375	0.875	0.875	28.500	2.75	1.625	1.625	0.438	0.438
LCR-226	1.08	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.500	0.500	12.000	2.750	1.625	1.625	0.406	0.406
LCR-227	0.48	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.500	0.500	3.750	1.500	1.625	1.625	0.406	0.406
LCR-228	1.1	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.500	0.500	22.50	2.75	1.625	1.625	0.406	0.406
LCR-229	0.8	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.500	0.500	9.750	2.750	1.625	1.625	0.406	0.406
LCR-230	0.43	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.500	0.500	2.250	0.750	1.625	1.625	0.406	0.406
LCR-231	0.94	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.500	0.500	12.750	2.75	1.625	1.625	0.406	0.406
LCR-232	1.19	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.500	0.500	25.500	2.75	1.625	1.625	0.406	0.406
LCR-233	1.18	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.500	0.500	24.000	2.75	1.625	1.625	0.406	0.406
LCR-234	1.35	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.500	0.500	30.000	2.75	1.625	1.625	0.406	0.406
LCR-235	0.42	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.500	0.500	1.75	0.625	1.625	1.625	0.406	0.406
LCR-236	0.95	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.906	0.906	13.500	2.75	1.625	1.625	0.644	0.644
LCR-237	1.32	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.906	0.906	25.500	2.75	1.625	1.625	0.644	0.644
LCR-238	0.81	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.906	0.906	7.500	2.750	1.625	1.625	0.644	0.644
LCR-239	1.05	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.906	0.906	20.250	2.75	1.625	1.625	0.644	0.644
LCR-240	0.8	1/2-20	6.00	5.75	6.25	0.501	0.501	0.625	0.625	3.000	1.250	2.125	2.125	0.500	0.500
LCR-241	1.69	1/2-20	21.50	20.876	22.25	0.501	0.501	0.625	0.625	19.000	3.25	2.125	2.125	0.500	0.500
LCR-242	1.75	1/2-20	17.50	16.876	18.250	0.501	0.501	1.125	1.125	15.000	3.25	2.125	2.125	0.875	0.875
LCR-243	0.59	3/8-24 RH/LH	11.31	9.375	13.250	0.375	0.375	0.875	0.875	9.000	2.750	1.625	1.625	0.438	0.438
LCR-244	0.98	3/8-24 RH/LH	24.00	22.125	26.000	0.375	0.375	0.875	0.875	21.750	2.75	1.625	1.625	0.438	0.438
LCR-245	0.51	3/8-24 RH/LH	6.50	5.9540	7.2500	0.375	0.375	0.875	0.875	3.000	1.250	1.625	1.625	0.438	0.438
LCR-246	0.9	3/8-24 RH/LH	18.75	16.875	20.750	0.375	0.375	0.875	0.875	16.50	2.75	1.625	1.625	0.438	0.438
LCR-247	1.29	3/8-24 RH/LH	31.50	29.625	33.500	0.375	0.375	0.875	0.875	29.250	2.75	1.625	1.625	0.438	0.438
LCR-248	1.12	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.500	0.500	18.000	2.75	1.625	1.625	0.406	0.406
LCR-249	0.8	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.500	0.500	9.750	2.750	1.625	1.625	0.406	0.406
LCR-250	1.11	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.500	0.500	17.250	2.75	1.625	1.625	0.406	0.406
LCR-251	1.36	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.500	0.500	33.000	2.75	1.625	1.625	0.406	0.406
LCR-252	1.36	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.500	0.500	33.000	2.75	1.625	1.625	0.406	0.406
LCR-253	0.99	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.500	0.500	13.500	2.75	1.625	1.625	0.406	0.406
LCR-254	1.17	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.500	0.500	23.250	2.75	1.625	1.625	0.406	0.406
LCR-255	1.18	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.500	0.500	24.750	2.75	1.625	1.625	0.406	0.406
LCR-256	1.14	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.500	0.500	19.500	2.75	1.625	1.625	0.406	0.406
LCR-257	0.42	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.500	0.500	1.75	0.625	1.625	1.625	0.406	0.406
LCR-258	0.97	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.906	0.906	14.25	2.75	1.625	1.625	0.644	0.644
LCR-259	1.36	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.906	0.906	27.000	2.75	1.625	1.625	0.644	0.644
LCR-260	0.68	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.906	0.906	8.250	2.750	1.625	1.625	0.644	0.644
LCR-261	1.42	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.906	0.906	21.000	2.75	1.625	1.625	0.644	0.644
LCR-262	0.86	1/2-20	6.50	5.876	7.25	0.501	0.501	0.625	0.625	4.000	1.75	2.125	2.125	0.500	0.500
LCR-263	1.73	1/2-20	22.50	21.876	23.25	0.501	0.501	0.625	0.625	20.000	3.25	2.125	2.125	0.500	0.500
LCR-264	1.79	1/2-20	18.50	17.876	19.250	0.501	0.501	1.125	1.125	16.000	3.25	2.125	2.125	0.875	0.875
LCR-265	0.61	3/8-24 RH/LH	12.75	10.875	14.750	0.375	0.375	0.875	0.875	9.750	2.750	1.625	1.625	0.438	0.438
LCR-266	1.01	3/8-24 RH/LH	24.75	22.875	26.750	0.375	0.375	0.875	0.875	22.50	2.75	1.625	1.625	0.438	0.438
LCR-267	0.53	3/8-24 RH/LH	7.00	5.954	8.000	0.375	0.375	0.875	0.875	3.750	1.500	1.625	1.625	0.438	0.438
LCR-268	0.92	3/8-24 RH/LH	19.50	17.625	21.500	0.375	0.375	0.875	0.875	17.250	2.75	1.625	1.625	0.438	0.438
LCR-269	1.32	3/8-24 RH/LH	32.25	30.375	34.250	0.375	0.375	0.875	0.875	30.000	2.75	1.625	1.625	0.438	0.438
LCR-270	0.85	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.500	0.500	10.500	2.750	1.625	1.625	0.406	0.406
LCR-271	1.11	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.500	0.500	17.250	2.75	1.625	1.625	0.406	0.406
LCR-272	1.17	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.500	0.500	21.750	2.75	1.625	1.625	0.406	0.406
LCR-273	1.44	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.500	0.500	35.250	2.75	1.625	1.625	0.406	0.406
LCR-274	1.09	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.500	0.500	15.750	2.75	1.625	1.625	0.406	0.406
LCR-275	0.94	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.500	0.500	12.750	2.75	1.625	1.625	0.406	0.406
LCR-276	1.18	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.500	0.500	24.000	2.75	1.625	1.625	0.406	0.406
LCR-277	1.35	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.500	0.500	30.000	2.75	1.625	1.625	0.406	0.406
LCR-278	1.16	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.500	0.500	21.000	2.75	1.625	1.625	0.406	0.406
LCR-279	0.59	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.906	0.906	1.75	0.625	1.625	1.625	0.644	0.644
LCR-280	0.99	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.906	0.906	15.000	2.75	1.625	1.625	0.644	0.644
LCR-281	1.39	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.906	0.906	27.750	2.75	1.625	1.625	0.644	0.644
LCR-282	0.7	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.906	0.906	9.000	2.750	1.625	1.625	0.644	0.644
LCR-283	1.09	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.906	0.906	21.750	2.75	1.625	1.625	0.644	0.644
LCR-284	0.91	1/2-20	7.50	6.876	8.25	0.501	0.501	0.625	0.625	5.000	2.25	2.125	2.125	0.500	0.500
LCR-285	1.78	1/2-20	23.50	22.876	24.25	0.501	0.501	0.625	0.625	21.000	3.25	2.125	2.125	0.500	0.500
LCR-286	1.87	1/2-20	19.50	18.876	20.25	0.501	0.501	1.125	1.125	17.000	3.25	2.125	2.125	0.875	0.875
LCR-287	0.64	3/8-24 RH/LH	13.25	11.375	15.250	0.375	0.375	0.875	0.875	10.500	2.750	1.625	1.625	0.438	0.438
LCR-288	1.03	3/8-24 RH/LH	25.50	23.625	27.500	0.375	0.375	0.875	0.875	23.250	2.75	1.625	1.625	0.438	0.438
LCR-289	0.56	3/8-24 RH/LH	7.50	5.594	9.500	0.375	0.375	0.875	0.875	5.250	2.500	1.625	1.625	0.438	0.438
LCR-290	0.95	3/8-24 RH/LH	20.50	18.375	22.500	0.375	0.375	0.875	0.875	18.000	2.75	1.625	1.625	0.438	0.438
LCR-291	1.34	3/8-24 RH/LH	33.00	31.125	35.000	0.375	0.375	0.875	0.875	30.750	2.75	1.625	1.625	0.438	0.438
LCR-292	0.68	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.500	0.500	7.500	2.750	1.625	1.625	0.406	0.406
LCR-293	1.07	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.500	0.500	15.000	2.75	1.625	1.625	0.406	0.406
LCR-294	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.500	0.500	20.250	2.75	1.625	1.625	0.406	0.406
LCR-295	1.11	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.500	0.500	17.250	2.75	1.625	1.625	0.406	0.406
LCR-296	1.44	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.500	0.500	35.250	2.75	1.625	1.625	0.406	0.406
LCR-297	1.1	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.500	0.500	16.50	2.75	1.625	1.625	0.406	0.406
LCR-298	1.18	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.500	0.500	24.750	2.75	1.625	1.625	0.406	0.406
LCR-299	1.34	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.500	0.500	28.500	2.75	1.625	1.625	0.406	0.406
LCR-300	1.36	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.500	0.500	30.750	2.75	1.625	1.625	0.406	0.406
LCR-301	0.6	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.906	0.906	2.250	0.750	1.625	1.625	0.644	0.644
LCR-302	0.94	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.906	0.906	15.750	2.75	1.625	1.625	0.644	0.644
LCR-303	1.41	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.906	0.906	28.500	2.75	1.625	1.625	0.644	0.644
LCR-304	0.92	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.906	0.906	9.750	2.750	1.625	1.625	0.644	0.644
LCR-305	1.12	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.906	0.906	22.50	2.75	1.625	1.625	0.644	0.644
LCR-306	0.97	1/2-20	8.50	7.876	9.250	0.501	0.501	0.625	0.625	6.000	2.75	2.125	2.125	0.500	0.500
LCR-307	1.83	1/2-20	24.50	23.876	25.25	0.501	0.501	0.625	0.625	22.000	3.25	2.125	2.125	0.500	0.500
LCR-308	1.9	1/2-20	20.50	19.876	21.25	0.501	0.501	1.125	1.125	18.000	3.25	2.125	2.125	0.875	0.875
LCR-309	0.68	3/8-24 RH/LH	14.25	12.375	16.250	0.375	0.375	0.875	0.875	12.000	2.750	1.625	1.625	0.438	0.438
LCR-310	1.05	3/8-24 RH/LH	26.50	24.375	28.500	0.375	0.375	0.875	0.875	24.000	2.75	1.625	1.625	0.438	0.438
LCR-311	0.58	3/8-24 RH/LH	8.31	6.375	10.250	0.375	0.375	0.875	0.875	6.000	2.750	1.625	1.625	0.438	0.438
LCR-312	0.97	3/8-24 RH/LH	21.00	19.125	23.000	0.375	0.375	0.875	0.875	18.750	2.75	1.625	1.625	0.438	0.438
LCR-313	1.41	3/8-24 RH/LH	35.25	33.375	37.250	0.375	0.375	0.875	0.875	33.000	2.75	1.625	1.625	0.438	0.438
LCR-314	1.08	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.500	0.500	12.000	2.750	1.625	1.625	0.406	0.406
LCR-315	0.8	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.500	0.500	9.750	2.750	1.625	1.625	0.406	0.406
LCR-316	1.03	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.500	0.500	14.25	2.75	1.625	1.625	0.406	0.406
LCR-317	1.03	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.500	0.500	14.25	2.75	1.625	1.625	0.406	0.406
LCR-318	0.43	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.500	0.500	2.250	0.750	1.625	1.625	0.406	0.406
LCR-319	0.99	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.500	0.500	13.500	2.75	1.625	1.625	0.406	0.406
LCR-320	1.1	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.500	0.500	16.50	2.75	1.625	1.625	0.406	0.406
LCR-321	1.19	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.500	0.500	25.500	2.75	1.625	1.625	0.406	0.406
LCR-322	1.17	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.500	0.500	23.250	2.75	1.625	1.625	0.406	0.406
LCR-323	0.63	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.906	0.906	3.000	1.250	1.625	1.625	0.644	0.644
LCR-324	1.04	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.906	0.906	16.50	2.75	1.625	1.625	0.644	0.644
LCR-325	1.43	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.906	0.906	29.250	2.75	1.625	1.625	0.644	0.644
LCR-326	0.96	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.906	0.906	10.500	2.750	1.625	1.625	0.644	0.644
LCR-327	1.14	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.906	0.906	23.250	2.75	1.625	1.625	0.644	0.644
LCR-328	1.03	1/2-20	9.50	8.876	10.25	0.501	0.501	0.625	0.625	7.000	2.75	2.125	2.125	0.500	0.500
LCR-329	1.08	1/2-20	6.00	5.75	6.25	0.501	0.501	1.125	1.125	3.000	1.250	2.125	2.125	0.875	0.875
LCR-330	1.98	1/2-20	21.50	20.876	22.25	0.501	0.501	1.125	1.125	19.000	3.25	2.125	2.125	0.875	0.875
LCR-331	0.71	3/8-24 RH/LH	15.00	13.125	17.000	0.375	0.375	0.875	0.875	12.750	2.75	1.625	1.625	0.438	0.438
LCR-332	1.07	3/8-24 RH/LH	27.00	25.125	29.000	0.375	0.375	0.875	0.875	24.750	2.75	1.625	1.625	0.438	0.438
LCR-333	0.6	3/8-24 RH/LH	9.00	7.125	11.000	0.375	0.375	0.875	0.875	6.750	2.750	1.625	1.625	0.438	0.438
LCR-334	0.99	3/8-24 RH/LH	21.75	19.875	23.750	0.375	0.375	0.875	0.875	19.500	2.75	1.625	1.625	0.438	0.438
LCR-335	1.48	3/8-24 RH/LH	37.50	35.625	39.500	0.375	0.375	0.875	0.875	35.250	2.75	1.625	1.625	0.438	0.438
LCR-336	1.12	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.500	0.500	18.000	2.75	1.625	1.625	0.406	0.406
LCR-337	0.6	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.500	0.500	6.000	2.750	1.625	1.625	0.406	0.406
LCR-338	1.1	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.500	0.500	22.50	2.75	1.625	1.625	0.406	0.406
LCR-339	1.44	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.500	0.500	35.250	2.75	1.625	1.625	0.406	0.406
LCR-340	1.09	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.500	0.500	15.750	2.75	1.625	1.625	0.406	0.406
LCR-341	0.76	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.500	0.500	9.000	2.750	1.625	1.625	0.406	0.406
LCR-342	1.19	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.500	0.500	27.000	2.75	1.625	1.625	0.406	0.406
LCR-343	1.36	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.500	0.500	30.750	2.75	1.625	1.625	0.406	0.406
LCR-344	1.18	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.500	0.500	24.000	2.75	1.625	1.625	0.406	0.406
LCR-345	0.65	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.906	0.906	3.750	1.500	1.625	1.625	0.644	0.644
LCR-346	1.06	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.906	0.906	17.250	2.75	1.625	1.625	0.644	0.644
LCR-347	1.45	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.906	0.906	30.000	2.75	1.625	1.625	0.644	0.644
LCR-348	1.16	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.906	0.906	12.000	2.750	1.625	1.625	0.644	0.644
LCR-349	1.16	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.906	0.906	24.000	2.75	1.625	1.625	0.644	0.644
LCR-350	1.07	1/2-20	10.50	9.876	11.250	0.501	0.501	0.625	0.625	8.000	3.25	2.125	2.125	0.500	0.500
LCR-351	1.14	1/2-20	6.50	5.876	7.25	0.501	0.501	1.125	1.125	4.000	1.75	2.125	2.125	0.875	0.875
LCR-352	2.01	1/2-20	22.50	21.876	23.25	0.501	0.501	1.125	1.125	20.000	3.25	2.125	2.125	0.875	0.875

Control de calidad

Inspección de cada unidad antes del envío

🔩

Inspección de materia prima

Certificados de material verificados. La composición se confirma con espectrómetro antes de iniciar el mecanizado.

🔍

Inspección con calibres de rosca

Control 100 % con calibre pasa/no pasa en todas las zonas roscadas. Tolerancia cero ante cualquier no conformidad dimensional.

⚖️

Ensayo de capacidad de carga

Se realizan ensayos de carga estática y dinámica en muestras representativas de cada lote de producción.

📏

Medición dimensional

Verificación por MMC de las dimensiones críticas: diámetro de la bola, taladro, paso de rosca y longitud del cuerpo.

🔬

Inspección superficial

Inspección visual y táctil para detectar rebabas, arañazos, grietas superficiales y defectos de recubrimiento.

🔄

Ensayo de articulación

Se miden el ángulo de desalineación y el par para confirmar que el rendimiento del revestimiento cumple la especificación.

🏆

Verificación del tratamiento térmico

Ensayos de dureza que confirman el correcto tratamiento térmico de los cuerpos de acero cromoly y de las bolas del rodamiento.

📋

Documentación del lote

Trazabilidad completa, desde el número de colada de la materia prima hasta la pieza terminada. Certificado de conformidad (COC) e informes de inspección disponibles.

Aplicaciones

Aplicaciones de las bielas de conexión

Varillajes de control mecánico

Las bielas de conexión transfieren el movimiento entre palancas, ejes, actuadores y brazos de control, mientras las cabezas de rótula absorben el cambio angular en cada punto de fijación. Ajuste la longitud total y la geometría de los extremos al mecanismo.

Sistemas de dirección, suspensión y estabilización

Las bielas de conexión premontadas o fabricadas pueden utilizarse en sistemas de dirección y suspensión donde son importantes una longitud precisa y conexiones de extremo repetibles. Compruebe la orientación de las uniones y el recorrido antes del apriete final.

Equipos agrícolas e industriales

Los conjuntos de varillaje más largos son habituales en mandos de máquina, mecanismos agrícolas y equipos industriales. Seleccione la pista y el material de la cabeza de rótula según la oscilación, la contaminación, la carga y el plan de mantenimiento previstos.

Productos relacionados

Más de la serie Biela de conexión

Todos los productos →

LCR-345 Biela de conexión de eslabonamiento 5.75 in, rosca derecha/izquierda 3/8-24, roscas de espárrago de cabeza de rótula 3/8-24, pista de nailon

LCR-345

Ver producto →

LCR-344 Biela de conexión de eslabonamiento 26.00 in, rosca derecha/izquierda 3/8-24, diámetros interiores 3/8 in, pista de bronce

LCR-344

Ver producto →

LCR-343 Biela de conexión de eslabonamiento 32.75 in, rosca derecha/izquierda 3/8-24, diámetros interiores 3/8 in, pista de acero

LCR-343

Ver producto →

LCR-342 Biela de conexión de eslabonamiento 29.00 in, rosca derecha/izquierda 3/8-24, diámetros interiores 3/8 in, pista de acero

LCR-342

Ver producto →

Solicitar presupuesto

Solicitar presupuesto: Biela de conexión

Indíquenos el número de pieza, la cantidad necesaria y cualquier requisito especial de material o embalaje. Respondemos en 24 horas.

✉

Correo electrónico

[email protected]

⚡ Respuesta en 24 h

🎁 Muestras gratuitas

🔒 NDA available

📦 MOQ desde 50 uds.

FAQ

Biela de conexión — Preguntas frecuentes

¿Dónde se utilizaría la biela de conexión LCR-260?

El LCR-260 es una bieleta de conexión de longitud nominal de 10.25 in para enlaces mecánicos ajustables, barras de control y conjuntos de transferencia de movimiento, con una rosca RH/LH de 3/8-24 en el cuerpo de conexión y un espárrago roscado para cabeza de rótula de 3/8-24 equipado con un rodamiento esférico con pista de acero en cada extremo, de modo que la longitud instalada puede ajustarse con precisión y cada extremo puede articularse.

¿Cuáles son las cotas L1, L2 y L3 del LCR-260?

El LCR-260 tiene un rango de ajuste general L1 de 9.626–10.75 in, con una longitud de referencia L2 de 8.250 in y una dimensión típica L3 de 2.750 in, lo que proporciona aproximadamente 1.1 in de ajuste total de longitud mediante los extremos roscados RH/LH de 3/8-24.

¿Qué tipo de rodamiento está montado en cada extremo del LCR-260?

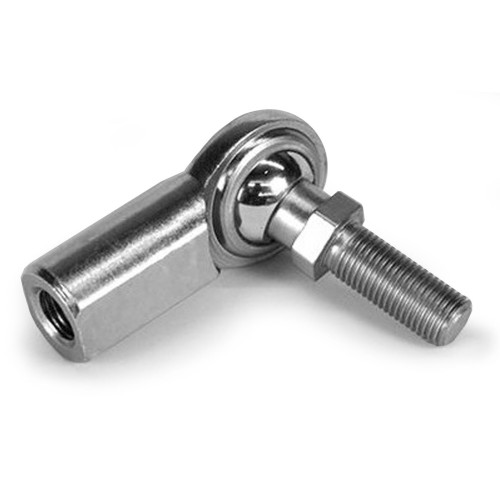

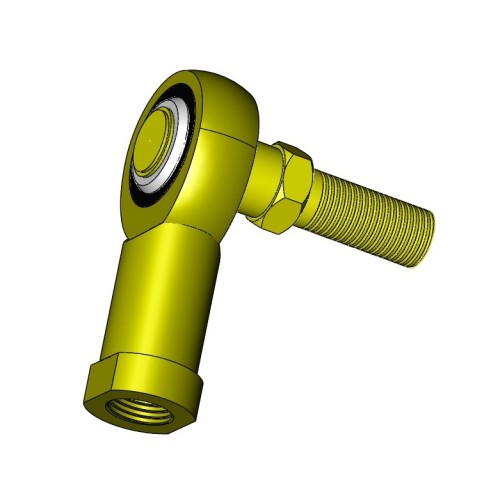

Cada extremo del LCR-260 termina en un espárrago roscado para cabeza de rótula de 3/8-24 equipado con un rodamiento esférico de cabeza de rótula con pista de acero, de modo que la barra se enrosca para ajustar la longitud y articula en cada punto de pivote.

¿El LCR-260 está disponible en algo además de acero estándar?

La construcción estándar es de acero al carbono. También se ofrece acero cromoly, con aleación de aluminio y acero inoxidable disponibles como materiales opcionales — confirme el material, el acabado y el sentido de la rosca con SYZ antes de pedir.

¿El LCR-260 se ajusta como un tirante tensor?

Sí. Como la configuración RH/LH de 3/8-24 empareja una rosca derecha en un extremo con una rosca izquierda en el otro, girar el cuerpo central cambia la longitud instalada al estilo de un tirante tensor, sin desenroscar ninguno de los extremos.

¿Ofrece SYZ longitudes personalizadas u opciones de rosca para el LCR-260?

Sí. SYZ puede ajustar la longitud nominal, el tamaño/sentido de la rosca, el estilo de extremo y el material para proyectos de enlaces OEM o personalizados — proporcione su rango L1 objetivo y la rosca de montaje al solicitar una cotización para el LCR-260.

LCR-260 Biela de conexión de eslabonamiento 10.25 in, rosca derecha/izquierda 3/8-24, roscas de espárrago de cabeza de rótula 3/8-24, pista de acero

Biela de conexión · LCR-260

50 pcs

Pedido mín.

Muestra gratuita Solicitar presupuesto →
