JM-M / JF-M Series — Metric Rod Ends
JM-M & JF-M Series
Metric 3-Piece Carbon Steel Rod Ends
Metric Threads · Yellow Zinc Plated Body · PTFE Lined Optional
18
Compatibilidad de marcas
18
Búsqueda cruzada
N.º de pieza SYZ
Cualquier n.º de pieza SYZ
Cualquier B
Cualquier N
0 matching spec rows

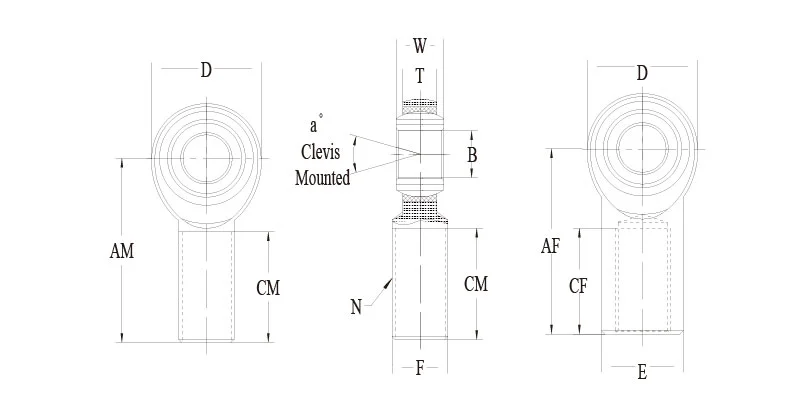

| TYPE | RH PART NO. | LH PART NO. | B | D | N | W | T | BALL | CM / CF | Cualquier a° | A° | STATIC | WEIGHT | QTY | ACTION |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Añadir | JMR5M | JML5M | 5 | 16 | M5 X 0.8 | 8 | 6.25 | 11.10 | 33 (AM) | 20 (CM) | 14 | 5170 | 13 | ||
| Añadir | JMR6M | JML6M | 6 | 19 | M6 X 1.0 | 9 | 7 | 12.70 | 36 (AM) | 22 (CM) | 13 | 7295 | 18 | ||
| Añadir | JMR8M | JML8M | 8 | 22.25 | M8 X 1.25 | 12 | 8.75 | 15.88 | 42 (AM) | 25 (CM) | 18 | 13595 | 31 | ||
| Añadir | JMR8Mx1.0 | JML8Mx1.0 | 8 | 22.25 | M8 X 1.0 | 12 | 8.75 | 15.88 | 42 (AM) | 25 (CM) | 18 | 13595 | 31 | ||
| Añadir | JMR10M | JML10M | 10 | 27 | M10 X 1.5 | 14 | 10.50 | 19.05 | 48 (AM) | 29 (CM) | 17 | 20605 | 68 | ||
| Añadir | JMR10Mx1.25 | JML10Mx1.25 | 10 | 27 | M10 X 1.25 | 14 | 10.50 | 19.05 | 48 (AM) | 29 (CM) | 17 | 20605 | 68 | ||
| Añadir | JMR12M | JML12M | 12 | 30 | M12X1.75 | 16 | 12 | 22.23 | 54 (AM) | 33 (CM) | 17 | 18215 | 78 | ||
| Añadir | JMR12Mx1.25 | JML12Mx1.25 | 12 | 30 | M12X1.25 | 16 | 12 | 22.23 | 54 (AM) | 33 (CM) | 17 | 18215 | 78 |
