MPM / MPF Series — Metric Rod Ends

MPM & MPF Series
Metric Self-Lubricating Rod Ends

Metric Threads · Injection Molded PTFE Race · Carbon Steel Yellow Zinc Plated Body

8

Compatibilidad de marcas

8

Búsqueda cruzada

MPM MPF series rod end product overview

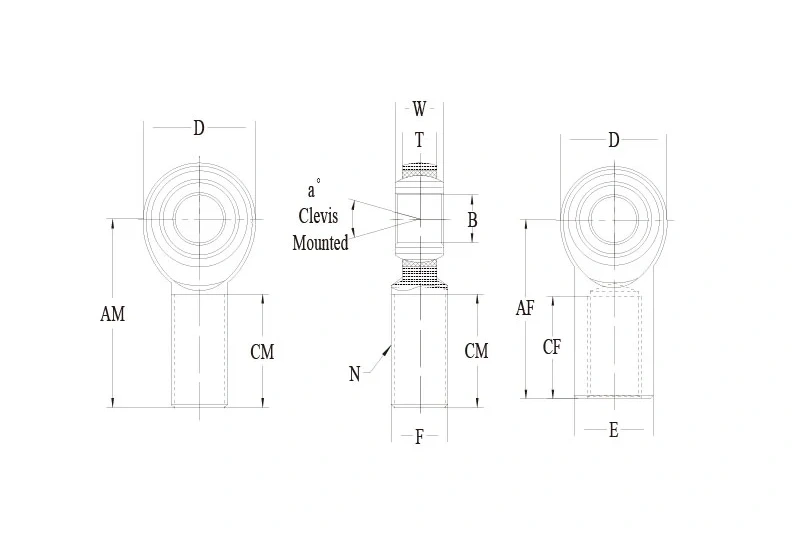

MPM MPF series metric rod end technical drawing

Cualquier B

Cualquier N

B

N

Poliuretano

Tipo	DIÁ.	DIÁ.	BROSCA +0.065 -0.012	DROSCA +0.38 -0.38	NANCHO METRIC	WBola +0.12 -0.12	TBola +0.13 -0.13	BALLROSCA LARGO	CM / CFLARGO +0.40 -0.40	Cualquier a°LARGO +1.00 -1.00	A°REF. Estática LARGO	CARGA(LBS) Peso (N)	PesoCant. (g)	Macho		Añadir
Añadir	MPMR5	MPML5	5	18	M5 X0.8	8	6.00	11.10	33 (AM)	20 (CM)	13	5000	17
Añadir	MPMR6	MPML6	6	20	M6 X 1.0	9	6.75	12.70	36 (AM)	22 (CM)	13	7000	25
Añadir	MPFR5	MPFL5	5	18	M5 X0.8	8	6.00	11.10	33 (AF)	20 (CF)	13	5000	17
Añadir	MPFR6	MPFL6	6	20	M6 X 1.0	9	6.75	12.70	36 (AF)	22 (CF)	13	7000	25

Pista:

Inyectado, nailon reforzado con PTFE. 52100 bearing steel, precision ground, heat treated, and hard chrome plated for long-wear articulation.
Acero cromoly 4130, tratamiento térmico, cromado duro. Injection molded, reinforced nylon with PTFE for self-lubricating, self-sealing performance.
Configuraciones de espárrago disponibles: Carbon steel body with yellow zinc plating for economical metric linkage service and corrosion resistance.

Notas

Stud configurations available: add S to the suffix, for example MPMR12S.
Inch size available: check the Nailon reforzado moldeado por inyección + PTFE series for inch-size equivalents.
Other thread pitch available: add the pitch to the suffix, for example MPMR12x1.25.
Available in silver zinc plating for applications that require an alternate finish.

🍪
